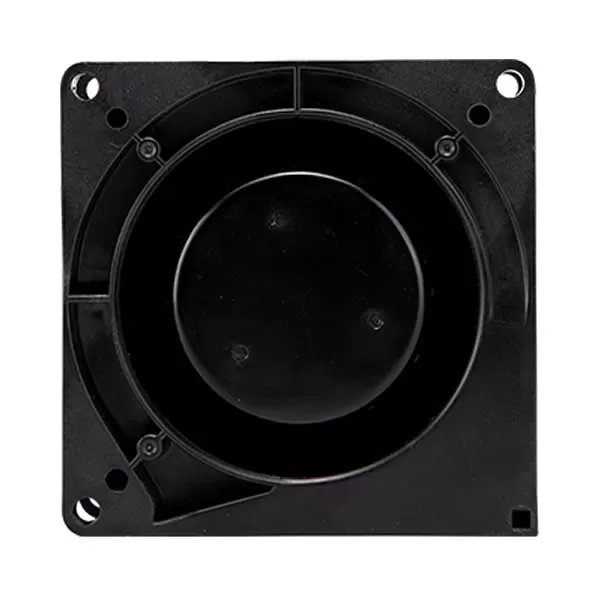

WT24B3-E2 Comair Rotron

$43.89

SKU: WT24B3-E2

Description

WT24B3-E2 Comair Rotron 19039661A 80x80x32mm 24VDC 0.2A 4.8W 4050RPM 15CFM 25m³/h 51.4dB(A) Ball 0.62inH2O 154Pa 2 Wire Leads Blower fan

Specifications

Model Number

WT24B3-E2

Air Flow

15 CFM

Weight

190 g

Manufacturer

Comair Rotron

Series

Whiffet DC

Dimensions

80x80x32 mm

Voltage Rating

24 VDC

Fan Type

DC

Operating Voltage

12-28VDC

Current Rating

0.2 A

Power Rating

4.8 W

Fan Speed

4050 RPM

Air Flow (m3)

25 m³/h

Bearing Type

Ball Bearing

Part Number

19039661A

Noise Level

51.4 dB(A)

Static Pressure

0.62 in H2O

Operating Temperature

-40 ~ 158°F (-40 ~ 70°C)

Storage Temperature

-40°C to 85°C

Approval Agency

CE, cUL, UL

Lifetime @ Temp

55000 Hrs @ 70°C

Propeller

Polypropylene, Black, UL 94V-0

Venturi

Plastic, Black, UL 94V-0

Termination

2 Wire Leads

Category

Blower

Static Pressure Pa

154 Pa
