Description

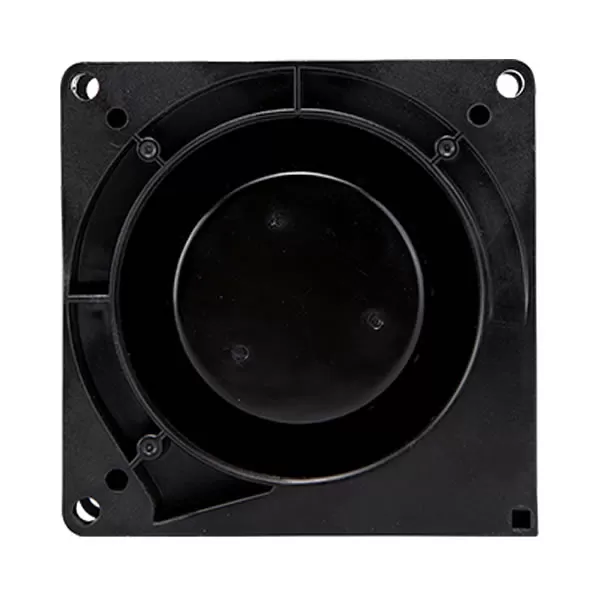

WT12Z3 Comair Rotron 19040713A 80x80x32mm 12VDC 0.9A 10.8W 5300RPM 19.6CFM 33m³/h 57.3dB(A) Ball 1.06inH2O 264Pa 2 Wire Leads Blower fan
Specifications
| Model Number | WT12Z3 |
|---|---|
| Air Flow | 19.6 CFM |
| Weight | 190 g |
| Manufacturer | Comair Rotron |
| Series | Whiffet DC |
| Dimensions | 80x80x32 mm |
| Voltage Rating | 12 VDC |
| Fan Type | DC |
| Operating Voltage | 6 – 14VDC |
| Current Rating | 0.9 A |
| Power Rating | 10.8 W |
| Fan Speed | 5300 RPM |
| Air Flow (m3) | 33 m³/h |
| Bearing Type | Ball Bearing |
| Part Number | 19040713A |
| Noise Level | 57.3 dB(A) |
| Static Pressure | 1.06 in H2O |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Storage Temperature | -40°C to 85°C |
| Approval Agency | CE, cUL, UL |
| Lifetime @ Temp | 55000 Hrs @ 70°C |
| Propeller | Plastic, Black, UL 94V-0 |
| Venturi | Plastic, Black, UL 94V-0 |
| Termination | 2 Wire Leads |
| Category | Blower |
| Static Pressure Pa | 264 Pa |
