Description

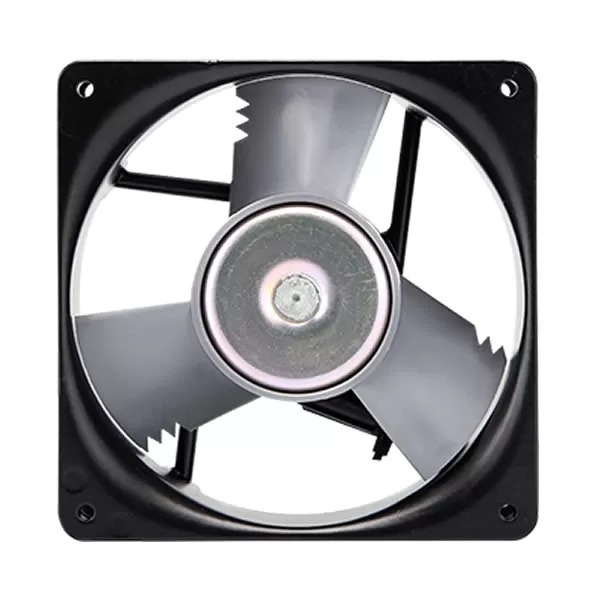

WD48M3 Comair Rotron 17000270A 120x120x39mm 48VDC 0.03A 1.2W 1650RPM 55CFM 93.5m³/h 30.3dB(A) Ball 0.08inH2O 20Pa 2 Wire Leads Axial DC fan
Specifications
| Model Number | WD48M3 |
|---|---|
| Air Flow | 55 CFM |
| Weight | 420 g |
| Manufacturer | Comair Rotron |
| Series | Whisper XL DC |
| Dimensions | 120x120x39 mm |
| Voltage Rating | 48 VDC |
| Fan Type | DC |
| Operating Voltage | 24 – 56VDC |
| Current Rating | 0.03 A |
| Power Rating | 1.2 W |
| Fan Speed | 1650 RPM |
| Air Flow (m3) | 93.5 m³/h |
| Bearing Type | Ball Bearing |
| Part Number | 17000270A |
| Noise Level | 30.3 dB(A) |
| Static Pressure | 0.08 in H2O |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Storage Temperature | -40°C to 85°C |
| Approval Agency | CE, cUL, UL |
| Lifetime @ Temp | 55000 Hrs @ 70°C |
| Propeller | Plastic, Black, UL 94V-0 |
| Venturi | Die-Cast Aluminum |
| Termination | 2 Wire Leads |
| Category | Axial DC |
| Static Pressure Pa | 20 Pa |
