Description

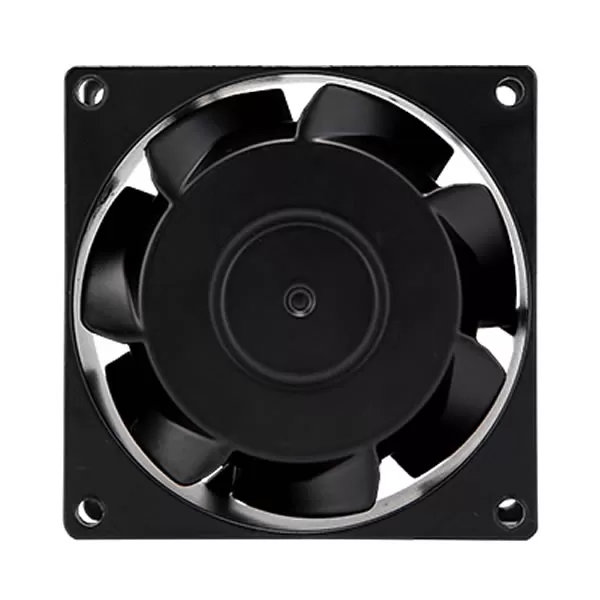

SU2B1 Comair Rotron 19028268A 80x80x38mm 115VAC 0.14A|0.13A 15W|13W 2800RPM|3200RPM 24CFM|31CFM 41.5/53.6m³/h 30dB(A)|32dB(A) Ball 0.13inH2O|0.17inH2O 32Pa|42Pa 2 Wire Leads Axial AC fan
Specifications
| Model Number | SU2B1 |
|---|---|
| Bearing Type | Ball Bearing |
| Category | Axial AC |
| Termination | 2 Wire Leads |
| Venturi | High quality magnesium alloy die-casting frame with ED coating and powder coating, Black. |
| Propeller | Magnesium alloy with ED coating, Black |
| Lifetime @ Temp | 83000 Hrs @ 50°C |
| Approval Agency | CE, cUL, UL |
| Storage Temperature | -40°C to 85°C |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Static Pressure | 0.13 in H2O, 0.17 in H2O |
| Noise Level | 30 dB(A), 32 dB(A) |
| Part Number | 19028268A |
| Air Flow (m3) | 41.5/53.6 m³/h |
| Air Flow | 24 CFM, 31 CFM |
| Fan Speed | 2800 RPM, 3200 RPM |
| Power Rating | 13 W, 15 W |
| Current Rating | 0.13 A, 0.14 A |
| Frequency | 50/60 Hz |
| Fan Type | AC |
| Voltage Rating | 115 VAC |
| Dimensions | 80x80x38 mm |
| Series | Sprite AC |
| Manufacturer | Comair Rotron |
| Weight | 260 g |
| Static Pressure Pa | 32 Pa, 42 Pa |
