STD48Z3E2X-E3 Comair Rotron

$38.89

SKU: STD48Z3E2X-E3

Description

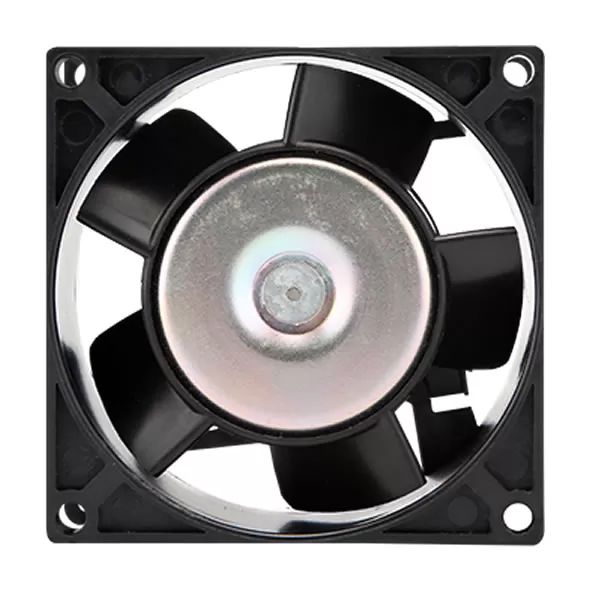

STD48Z3E2X-E3 Comair Rotron 17001137A 80x80x32mm 48VDC 0.12A 5.8W 4700RPM 45CFM 76.5m³/h 51.5dB(A) Ball 0.37inH2O 92Pa 4 Wire Leads Axial DC fan

Specifications

Model Number

STD48Z3E2X-E3

Air Flow (m3)

76.5 m³/h

Weight

180 g

Manufacturer

Comair Rotron

Series

Sprint DC

Dimensions

80x80x32 mm

Voltage Rating

48 VDC

Fan Type

DC

Operating Voltage

36 – 60VDC

Current Rating

0.12 A

Power Rating

5.8 W

Fan Speed

4700 RPM

Air Flow

45 CFM

Part Number

17001137A

Bearing Type

Ball Bearing

Noise Level

51.5 dB(A)

Static Pressure

0.37 in H2O

Operating Temperature

-40 ~ 158°F (-40 ~ 70°C)

Storage Temperature

-40°C to 85°C

Approval Agency

CE, cUL, UL

Lifetime @ Temp

45000 Hrs @ 70°C

Propeller

Plastic, Black, UL 94V-0

Venturi

Plastic, Black, UL 94V-0

Termination

4 Wire Leads

Category

Axial DC

Static Pressure Pa

92 Pa
