Description

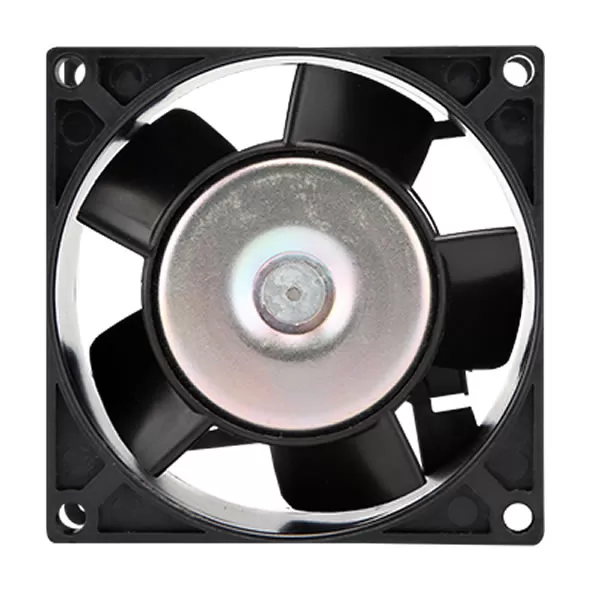

STD24B3E2X-E3 Comair Rotron 17001130A 80x80x32mm 24VDC 0.14A 3.3W 3400RPM 32CFM 54.4m³/h 40.9dB(A) Ball 0.23inH2O 57Pa 4 Wire Leads Axial DC fan
Specifications
| Model Number | STD24B3E2X-E3 |
|---|---|
| Air Flow (m3) | 54.4 m³/h |
| Weight | 180 g |
| Manufacturer | Comair Rotron |
| Series | Sprint DC |
| Dimensions | 80x80x32 mm |
| Voltage Rating | 24 VDC |
| Fan Type | DC |
| Operating Voltage | 16 – 32VDC |
| Current Rating | 0.14 A |
| Power Rating | 3.3 W |
| Fan Speed | 3400 RPM |
| Air Flow | 32 CFM |
| Part Number | 17001130A |
| Bearing Type | Ball Bearing |
| Noise Level | 40.9 dB(A) |
| Static Pressure | 0.23 in H2O |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Storage Temperature | -40°C to 85°C |
| Approval Agency | CE, cUL, UL |
| Lifetime @ Temp | 45000 Hrs @ 70°C |
| Propeller | Plastic, Black, UL 94V-0 |
| Venturi | Plastic, Black, UL 94V-0 |
| Termination | 4 Wire Leads |
| Category | Axial DC |
| Static Pressure Pa | 57 Pa |
