Description

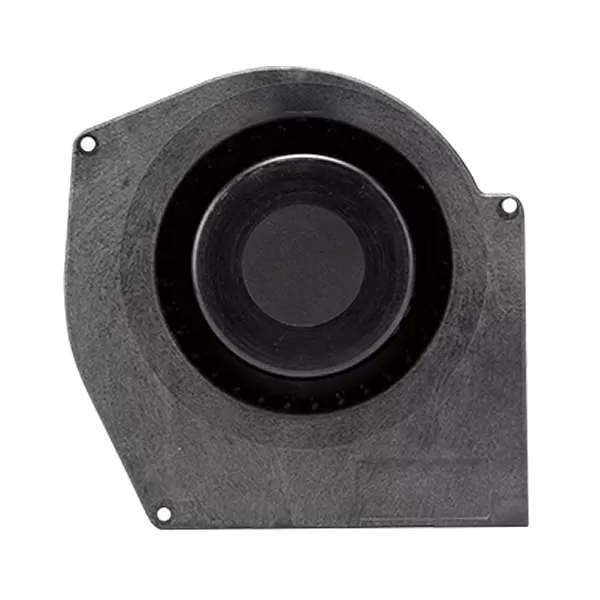

SPD24B1QDN Comair Rotron 19032364A 161x161x51mm 24VDC 1.25A 40W 2500RPM 59CFM 100.241m³/h 57dB(A) Ball 1.100755263inH2O 274Pa 5 Leadwires Blower fan
Specifications
| Model Number | SPD24B1QDN |
|---|---|
| Air Flow | 59 CFM |
| Weight | 950 g |
| Manufacturer | Comair Rotron |
| Series | Spinnaker DC |
| Dimensions | 161x161x51 mm |
| Voltage Rating | 24 VDC |
| Fan Type | DC |
| Operating Voltage | 12 – 28VDC |
| Current Rating | 1.25 A |
| Power Rating | 40 W |
| Fan Speed | 2500 RPM |
| Air Flow (m3) | 100.241 m³/h |
| Bearing Type | Ball Bearing |
| Part Number | 19032364A |
| Noise Level | 57 dB(A) |
| Static Pressure | 1.100755263 in H2O |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Storage Temperature | -40°C to 85°C |
| Approval Agency | CE, UL |
| Lifetime @ Temp | 62000 Hrs @ 50°C |
| Propeller | Plastic, Black, UL94V-0 |
| Venturi | Plastic Housing and Metal Backplate |
| Termination | 5 Leadwires |
| Category | Blower |
| Static Pressure Pa | 274 Pa |
