Description

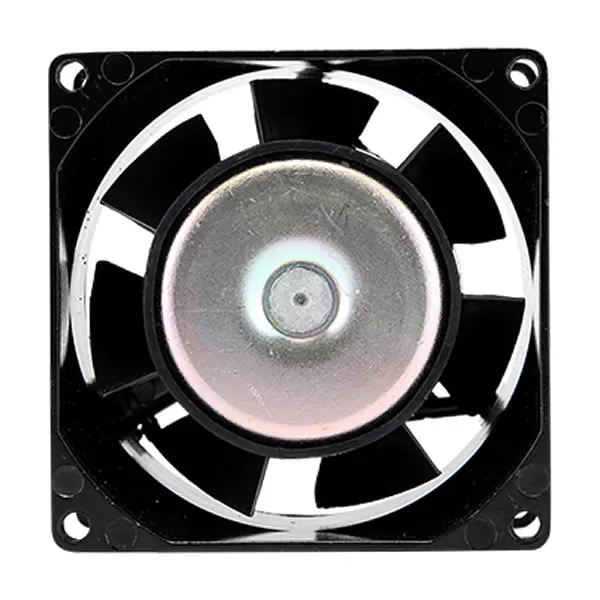

SD24Z1 Comair Rotron 17000264A 80x80x42mm 24VDC 0.32A 7.68W 4900RPM 50CFM 85.0m³/h 55.4dB(A) Ball 0.26inH2O 64Pa 2 Wire Leads Axial DC fan
Specifications
| Model Number | SD24Z1 |
|---|---|
| Air Flow | 50 CFM |
| Weight | 340 g |
| Manufacturer | Comair Rotron |
| Series | Sprite DC |
| Dimensions | 80x80x42 mm |
| Voltage Rating | 24 VDC |
| Fan Type | DC |
| Operating Voltage | 12 – 28VDC |
| Current Rating | 0.32 A |
| Power Rating | 7.68 W |
| Fan Speed | 4900 RPM |
| Air Flow (m3) | 85.0 m³/h |
| Bearing Type | Ball Bearing |
| Part Number | 17000264A |
| Noise Level | 55.4 dB(A) |
| Static Pressure | 0.26 in H2O |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Storage Temperature | -40°C to 85°C |
| Approval Agency | CE, cUL, UL |
| Lifetime @ Temp | 52000 Hrs @ 70°C |
| Propeller | Plastic, Black, UL 94V-0 |
| Venturi | Die-Cast Aluminum |
| Termination | 2 Wire Leads |
| Category | Axial DC |
| Static Pressure Pa | 64 Pa |
