Description

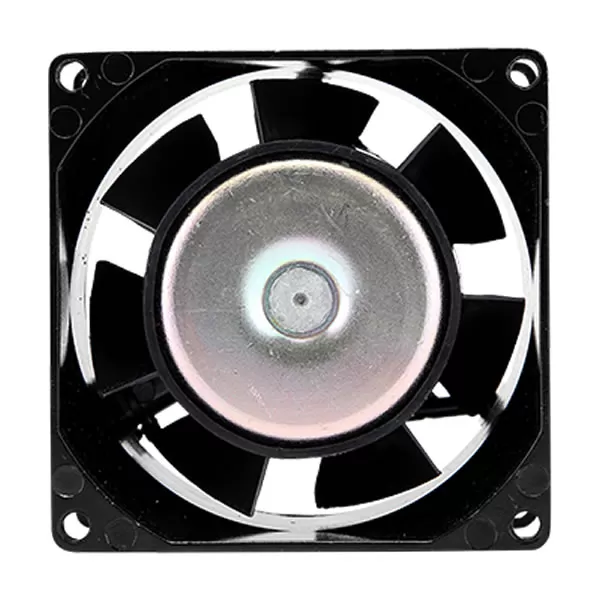

SD12B1 Comair Rotron 19028933A 80x80x42mm 12VDC 0.25A 3W 3500RPM 35CFM 59.5m³/h 47.6dB(A) Ball 0.15inH2O 37Pa 2 Wire Leads Axial DC fan
Specifications
| Model Number | SD12B1 |
|---|---|
| Air Flow | 35 CFM |
| Weight | 340 g |
| Manufacturer | Comair Rotron |
| Series | Sprite DC |
| Dimensions | 80x80x42 mm |
| Voltage Rating | 12 VDC |
| Fan Type | DC |
| Operating Voltage | 6 – 14VDC |
| Current Rating | 0.25 A |
| Power Rating | 3 W |
| Fan Speed | 3500 RPM |
| Air Flow (m3) | 59.5 m³/h |
| Bearing Type | Ball Bearing |
| Part Number | 19028933A |
| Noise Level | 47.6 dB(A) |
| Static Pressure | 0.15 in H2O |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Storage Temperature | -40°C to 85°C |
| Approval Agency | CE, cUL, UL |
| Lifetime @ Temp | 52000 Hrs @ 70°C |
| Propeller | Plastic, Black, UL 94V-0 |
| Venturi | Die-Cast Aluminum |
| Termination | 2 Wire Leads |
| Category | Axial DC |
| Static Pressure Pa | 37 Pa |
