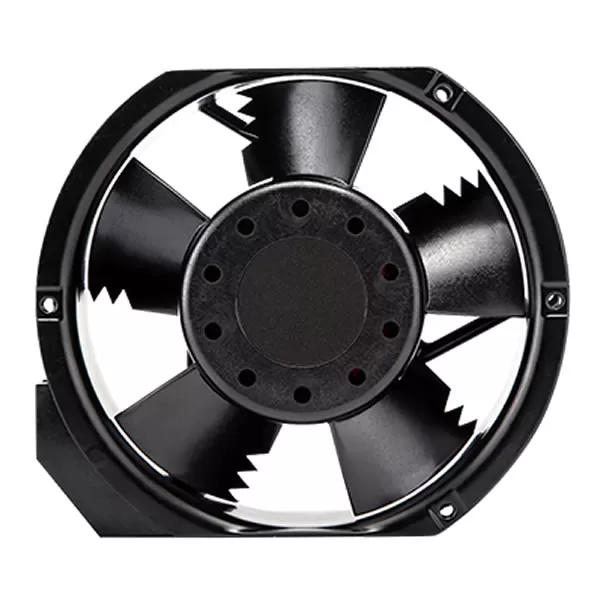

PT2B3 Comair Rotron

$43.89

SKU: PT2B3

Description

PT2B3 Comair Rotron 19028254A 172x51mm 115VAC 0.27A|0.26A 30W|31W 2850RPM|3350RPM 200CFM|235CFM 340/392m³/h 50.3dB(A)|54dB(A) Ball 0.56inH2O|0.77inH2O 139Pa|191Pa 2 Terminals Axial AC fan

Specifications

Model Number

PT2B3

Bearing Type

Ball Bearing

Category

Axial AC

Termination

2 Terminals

Venturi

Die Cast Aluminum

Propeller

Plastic, Black, UL 94V-0

Lifetime @ Temp

62000 Hrs @ 40°C

Approval Agency

CE, cUL, UL

Storage Temperature

-40°C to 85°C

Operating Temperature

-40 ~ 158°F (-40 ~ 70°C)

Static Pressure

0.56 in H2O, 0.77 in H2O

Noise Level

50.3 dB(A), 54 dB(A)

Part Number

19028254A

Air Flow (m3)

340/392 m³/h

Air Flow

200 CFM, 235 CFM

Fan Speed

2850 RPM, 3350 RPM

Power Rating

30 W, 31 W

Current Rating

0.26 A, 0.27 A

Frequency

50/60 Hz

Fan Type

AC

Voltage Rating

115 VAC

Dimensions

172×51 mm

Series

Patriot AC

Manufacturer

Comair Rotron

Weight

840 g

Static Pressure Pa

139 Pa, 191 Pa
