Description

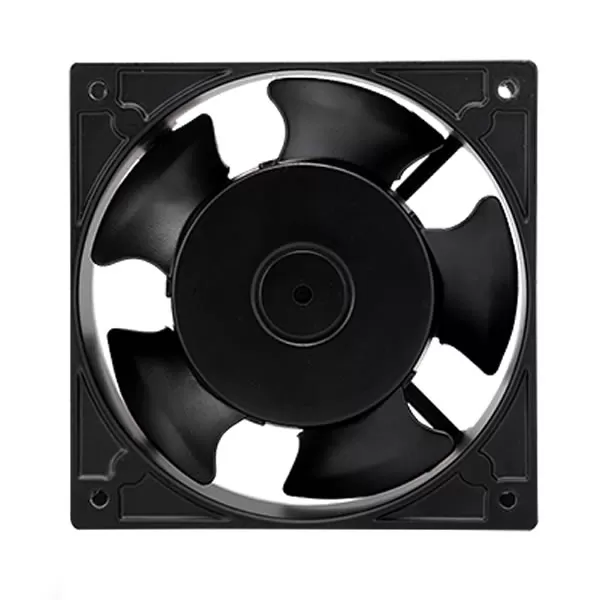

MX3B3 Comair Rotron 19028423A 120x120x38mm 220/230VAC 0.17A|0.14A 23W|20W 2500RPM|2850RPM 90CFM|100CFM 155.7/173m³/h 50dB(A)|52dB(A) Ball 0.20inH2O|0.25inH2O 50Pa|62Pa 2 Terminals Axial AC fan
Specifications
| Model Number | MX3B3 |
|---|---|
| Bearing Type | Ball Bearing |
| Category | Axial AC |
| Termination | 2 Terminals |
| Venturi | Plastic, Black, UL 94V-0 |
| Propeller | Magnesium alloy ED coating and painting. |
| Lifetime @ Temp | 83000 Hrs @ 40°C |
| Approval Agency | CE, cUL, UL |
| Storage Temperature | -40°C to 85°C |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Static Pressure | 0.20 in H2O, 0.25 in H2O |
| Noise Level | 50 dB(A), 52 dB(A) |
| Part Number | 19028423A |
| Air Flow (m3) | 155.7/173 m³/h |
| Air Flow | 100 CFM, 90 CFM |
| Fan Speed | 2500 RPM, 2850 RPM |
| Power Rating | 20 W, 23 W |
| Current Rating | 0.14 A, 0.17 A |
| Frequency | 50/60 Hz |
| Fan Type | AC |
| Voltage Rating | 220/230 VAC |
| Dimensions | 120x120x38 mm |
| Series | Muffin XL AC |
| Manufacturer | Comair Rotron |
| Weight | 450 g |
| Static Pressure Pa | 50 Pa, 62 Pa |
