Description

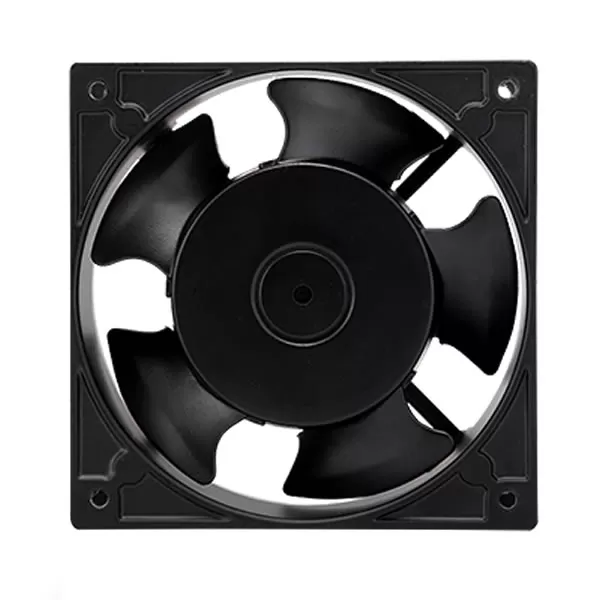

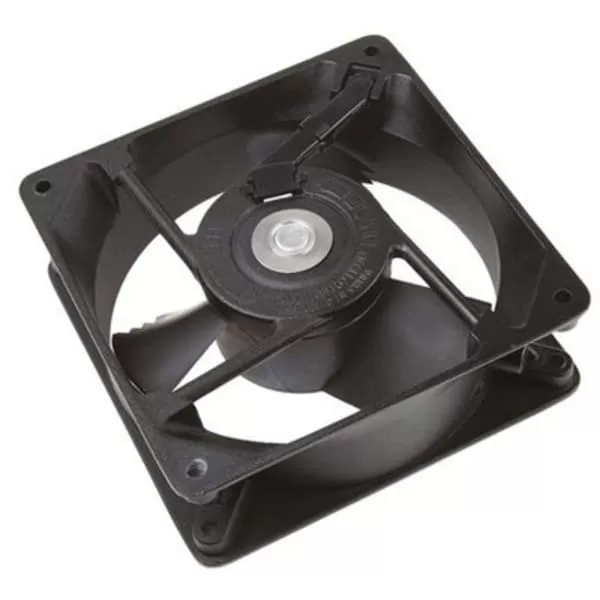

MX2B2 Comair Rotron 19030519A 120x120x38mm 99~121VAC 0.28A|0.22A 21W|18W 2700RPM|3100RPM 84CFM|100CFM 145.3/173m³/h 49dB(A)|51dB(A) Ball 0.28inH2O|0.34inH2O 70Pa|85Pa 2 Wire Leads Axial AC fan
Specifications
| Model Number | MX2B2 |
|---|---|
| Bearing Type | Ball Bearing |
| Category | Axial AC |
| Termination | 2 Wire Leads |
| Venturi | High quality magnesium alloy die-casting Frame with ED coating and powder coating, Black. |
| Propeller | Magnesium alloy ED coating and painting. |
| Lifetime @ Temp | 83000 Hrs @ 40°C |
| Approval Agency | CE, cUL, UL |
| Storage Temperature | -40°C to 85°C |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Static Pressure | 0.28 in H2O, 0.34 in H2O |
| Noise Level | 49 dB(A), 51 dB(A) |
| Part Number | 19030519A |
| Air Flow (m3) | 145.3/173 m³/h |
| Air Flow | 100 CFM, 84 CFM |
| Fan Speed | 2700 RPM, 3100 RPM |
| Power Rating | 18 W, 21 W |
| Current Rating | 0.22 A, 0.28 A |
| Frequency | 56/60 Hz |
| Fan Type | AC |
| Voltage Rating | 99~121 VAC |
| Dimensions | 120x120x38 mm |
| Series | Muffin XL AC |
| Manufacturer | Comair Rotron |
| Weight | 460 g |
| Static Pressure Pa | 70 Pa, 85 Pa |
