Description

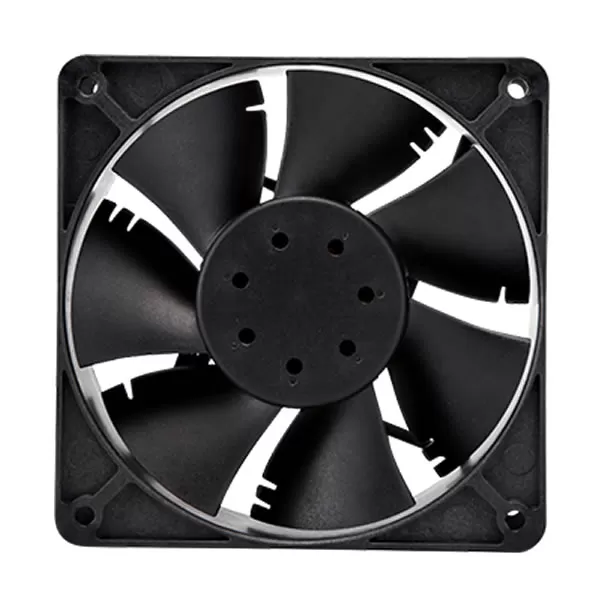

MSD12B3-E3 Comair Rotron 17001219A 120x120x38mm 12VDC 0.58A 7W 3000RPM 110CFM 187.0m³/h 49.1dB(A) Ball 0.28inH2O 70Pa 2 Wire Leads Axial DC fan
Specifications
| Model Number | MSD12B3-E3 |
|---|---|
| Air Flow | 110 CFM |
| Weight | 250 g |
| Manufacturer | Comair Rotron |
| Series | Muffin XP DC |
| Dimensions | 120x120x38 mm |
| Voltage Rating | 12 VDC |
| Fan Type | DC |
| Operating Voltage | 8 – 16VDC |
| Current Rating | 0.58 A |
| Power Rating | 7 W |
| Fan Speed | 3000 RPM |
| Air Flow (m3) | 187.0 m³/h |
| Bearing Type | Ball Bearing |
| Part Number | 17001219A |
| Noise Level | 49.1 dB(A) |
| Static Pressure | 0.28 in H2O |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Storage Temperature | -40°C to 85°C |
| Approval Agency | CE, cUL, UL |
| Lifetime @ Temp | 45000 Hrs @ 70°C |
| Propeller | Plastic, Black, UL 94V-0 |
| Venturi | Plastic, Black, UL 94V-0 |
| Termination | 2 Wire Leads |
| Category | Axial DC |
| Static Pressure Pa | 70 Pa |
