Description

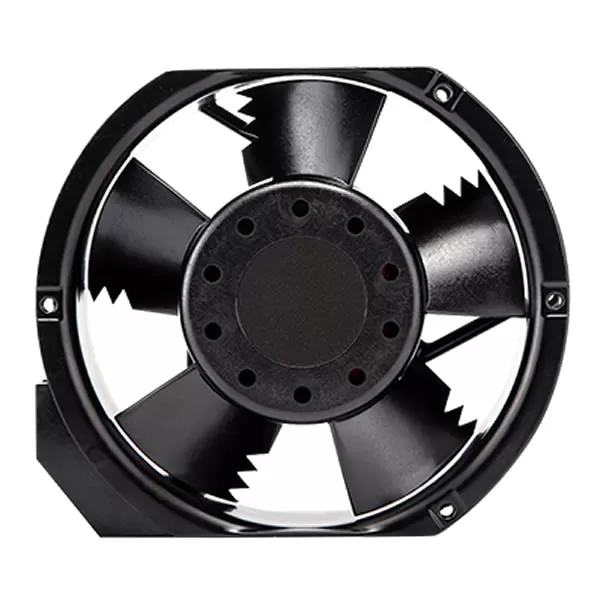

MR77D3 Comair Rotron 19032212A 172x150x51mm 220/230VAC 0.09A|0.08A 16W|15W 1400RPM|1700RPM 94CFM|114CFM 160/193m³/h 35.1dB(A)|39.2dB(A) Ball 0.15inH2O|0.21inH2O 36Pa|53Pa 2 Terminals Axial AC fan
Specifications
| Model Number | MR77D3 |
|---|---|
| Bearing Type | Ball Bearing |
| Category | Axial AC |
| Termination | 2 Terminals |
| Venturi | Die Cast Aluminum |
| Propeller | Plastic, Black, UL 94V-0 |
| Lifetime @ Temp | 62000 Hrs @ 40°C |
| Approval Agency | CE, cUL, UL |
| Storage Temperature | -40°C to 85°C |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Static Pressure | 0.15 in H2O, 0.21 in H2O |
| Noise Level | 35.1 dB(A), 39.2 dB(A) |
| Part Number | 19032212A |
| Air Flow (m3) | 160/193 m³/h |
| Air Flow | 114 CFM, 94 CFM |
| Fan Speed | 1400 RPM, 1700 RPM |
| Power Rating | 15 W, 16 W |
| Current Rating | 0.08 A, 0.09 A |
| Frequency | 50/60 Hz |
| Fan Type | AC |
| Voltage Rating | 220/230 VAC |
| Dimensions | 172x150x51 mm |
| Series | Major AC |
| Manufacturer | Comair Rotron |
| Weight | 840 g |
| Static Pressure Pa | 36 Pa, 53 Pa |
