Description

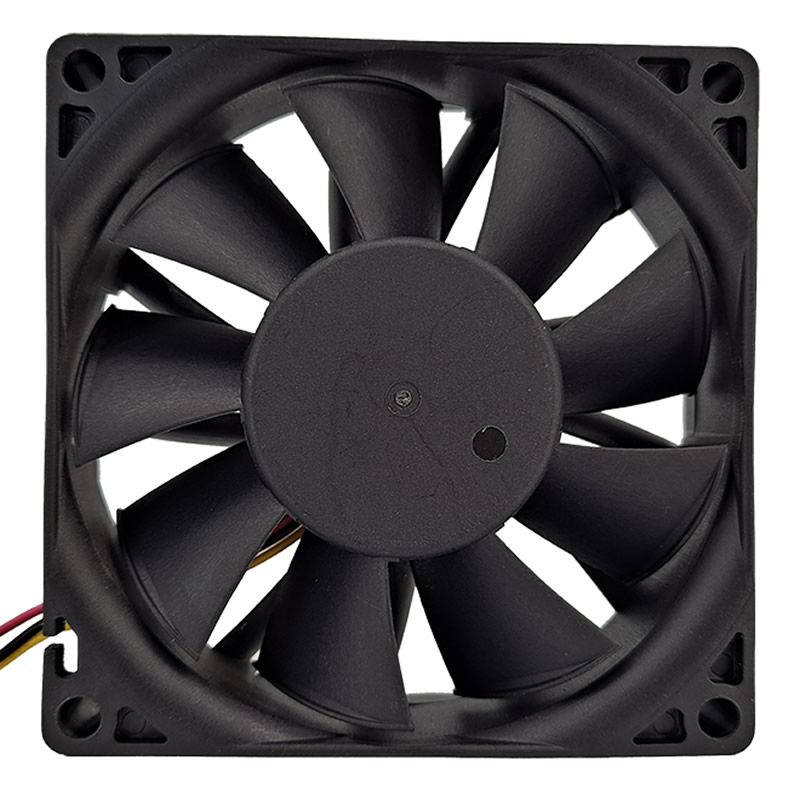

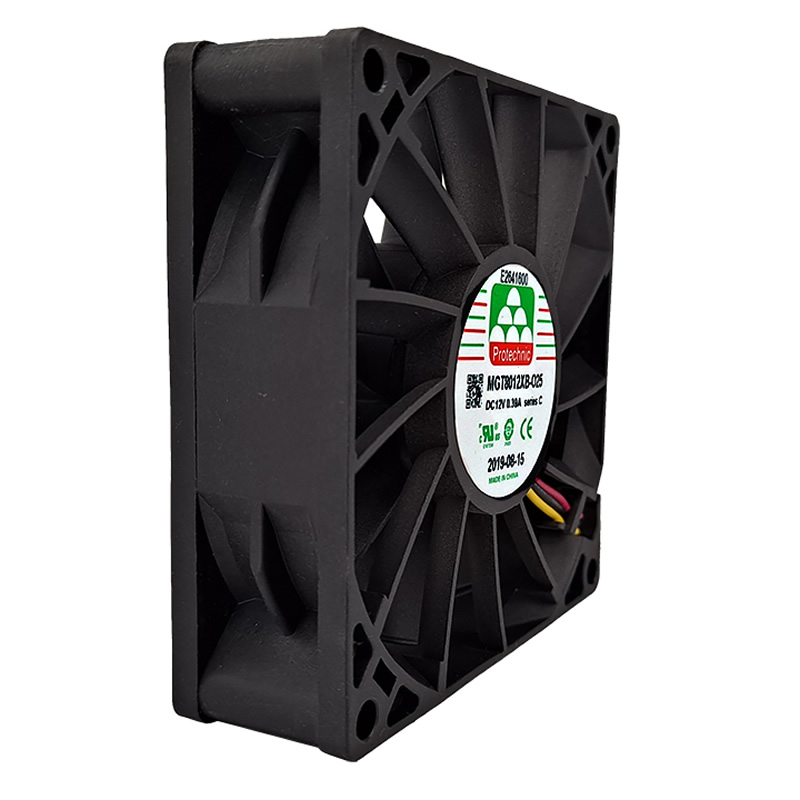

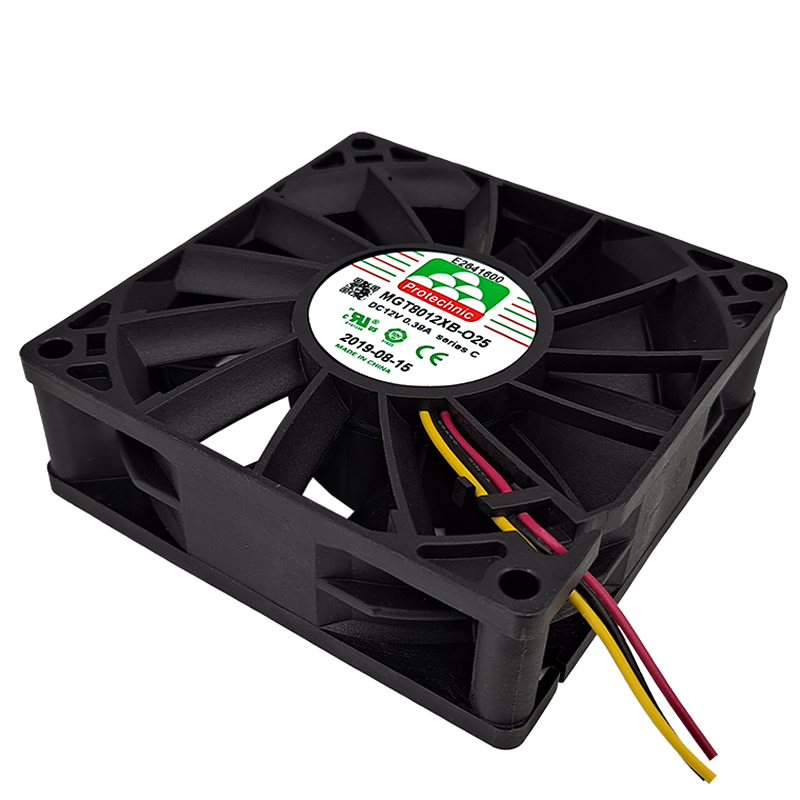

MGT8012XB-O25 Protechnic 12VDC 1.291m³/min 45.57CFM 57.39Pa 0.23inH2O 3600RPM 0.39A 4.68W 39.5dB(A) 80x80x25mm Ball Bearing 3 Wire Leads DC Axial Fan
Specifications
| Model Number | MGT8012XB-O25 |
|---|---|
| Actual Power | 2.04 W |
| Fan Type | DC |
| Voltage Rating | 12 VDC |
| Air Flow CMM | 1.291 m³/min |
| Air Flow | 45.57 CFM |
| Static Pressure Pa | 57.39 Pa |
| Static Pressure mmAq | 5.85 mmAq |
| Static Pressure | 0.23 in H2O |
| Fan Speed | 3600 RPM |
| Current Rating | 0.39 A |
| Actual Current | 0.17 A |
| Power Rating | 4.68 W |
| Manufacturer | Protechnic Electric |
| Weight | 74 g |
| Noise Level | 39.5 dB(A) |
| Dimensions | 80x80x25 mm |
| Bearing Type | Ball Bearing |
| Material Blade | Plastic |
| Material Frame | Plastic |
| Lifetime @ Temp | 40000 Hrs @ 60°C |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Storage Temperature | -40℃～70℃(5%～95% RH) |
| Approval Agency | CE, TUV, UL |
| Termination | 3 Wire Leads |
| Category | Axial Fan |
| Features | Automatic restart,locked current protection |
| series | 80*80*25mm series C |
| Number of blades | 9 |
| Subcategory | DC axial fan |
