Description

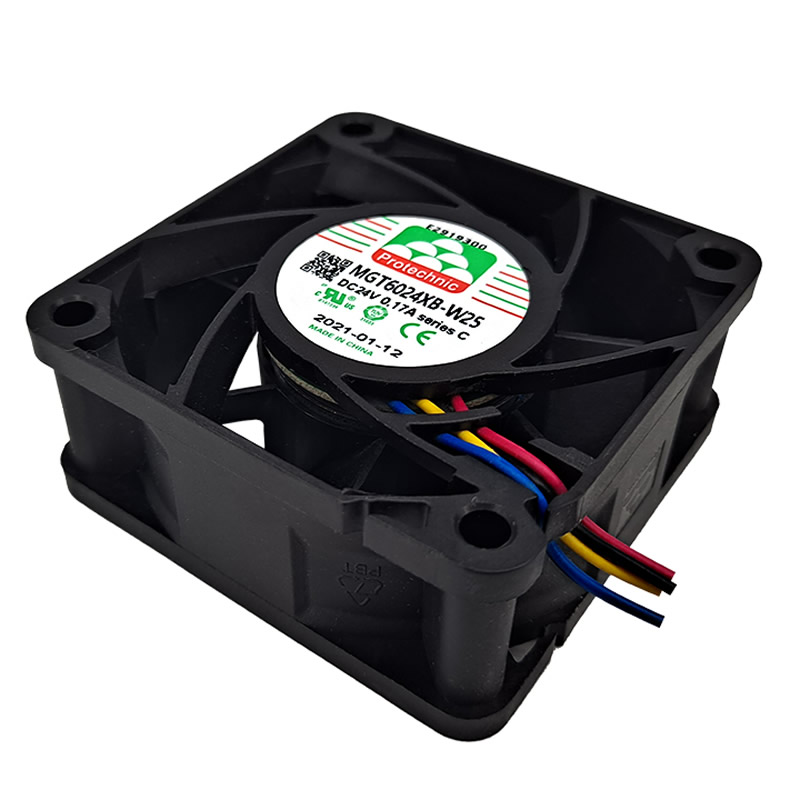

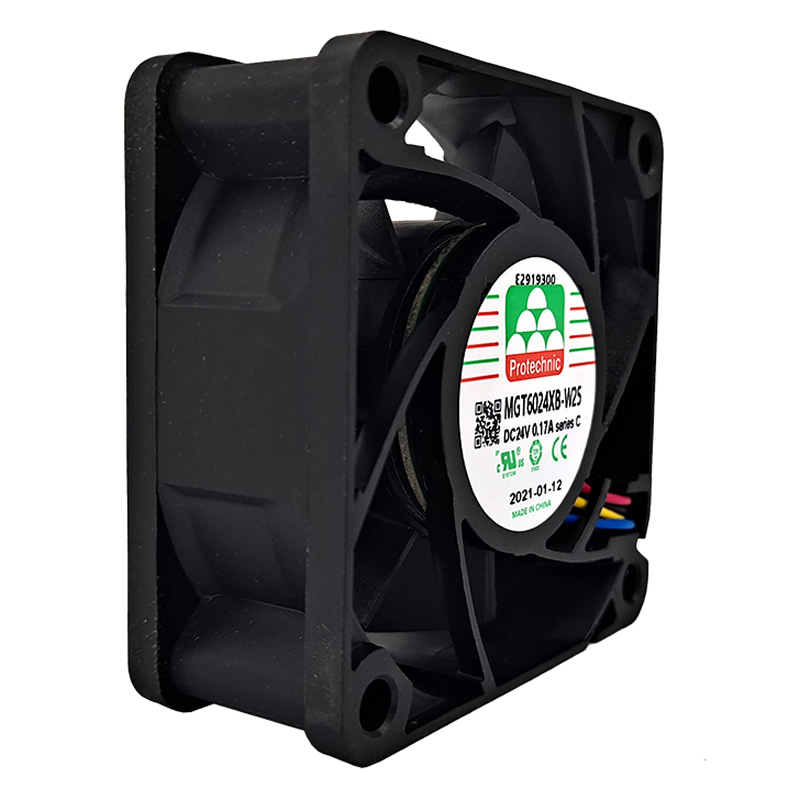

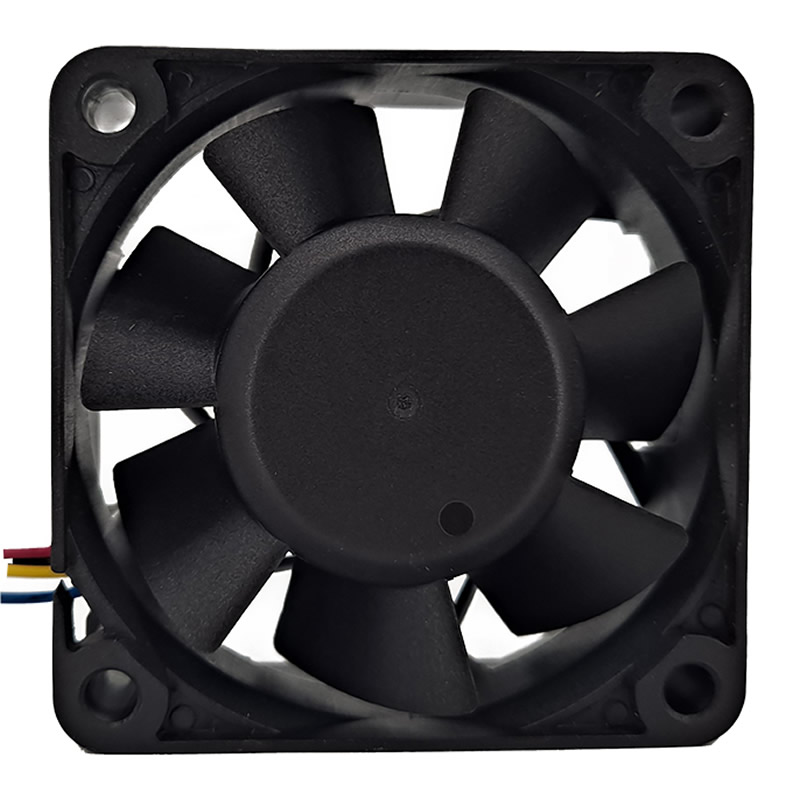

MGT6024XB-W25 Protechnic 24VDC 0.706m³/min 24.93CFM 66.81Pa 0.268inH2O 4800RPM 0.17A 4.08W 34.2dB(A) 60x60x25mm Ball Bearing 4 Wire Leads DC Axial Fan
Specifications
| Model Number | MGT6024XB-W25 |
|---|---|
| Manufacturer | Protechnic Electric |
| Fan Type | DC |
| Voltage Rating | 24 VDC |
| Air Flow CMM | 0.706 m³/min |
| Air Flow | 24.93 CFM |
| Static Pressure Pa | 66.81 Pa |
| Static Pressure mmAq | 6.81 mmAq |
| Static Pressure | 0.268 in H2O |
| Fan Speed | 4800 RPM |
| Current Rating | 0.17 A |
| Actual Current | 0.09 A |
| Power Rating | 4.08 W |
| Actual Power | 2.16 W |
| Noise Level | 34.2 dB(A) |
| Weight | 59 g |
| Dimensions | 60x60x25 mm |
| Bearing Type | Ball Bearing |
| Material Blade | Plastic |
| Material Frame | Plastic |
| Lifetime @ Temp | 40000 Hrs @ 60°C |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Storage Temperature | -40℃～70℃(5%～95% RH) |
| Approval Agency | CE, TUV, UL |
| Termination | 4 Wire Leads |
| Category | Axial Fan |
| Features | Pulse width modulation,automatic restart,locked current protection(PWM) |
| series | 60*60*25mm seriesC |
