Description

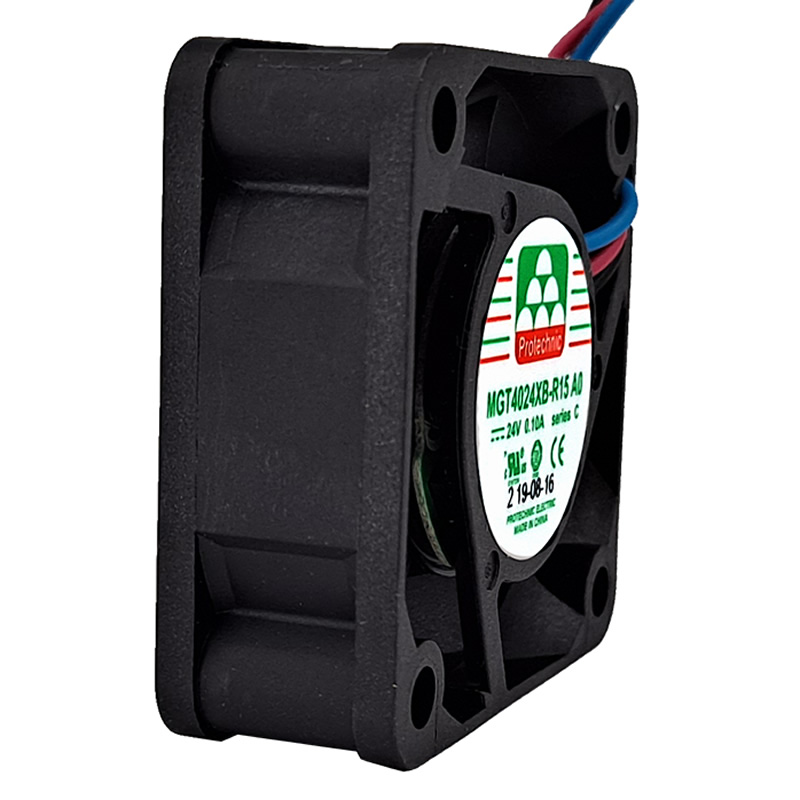

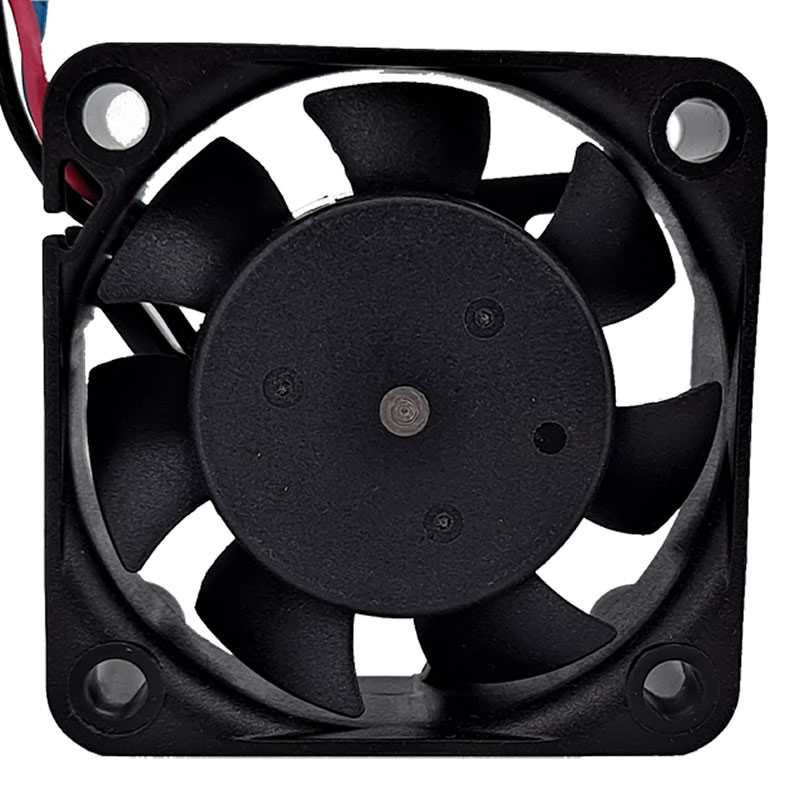

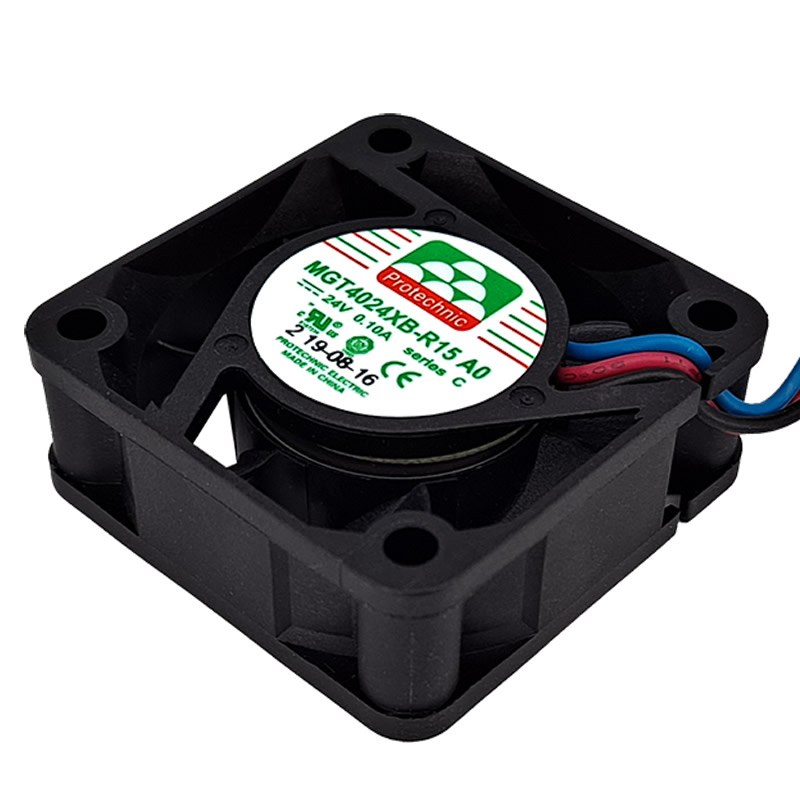

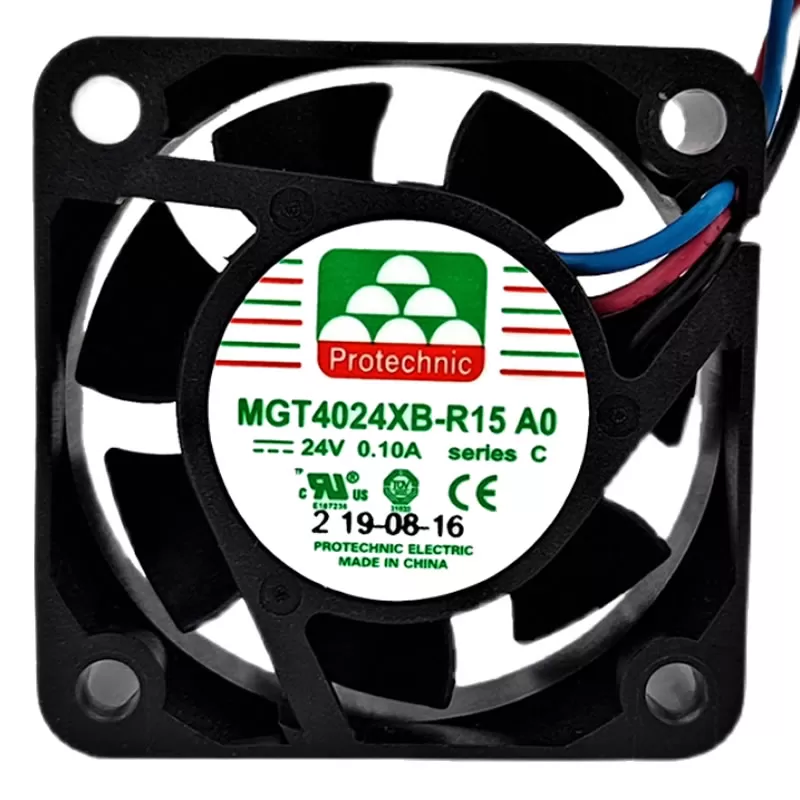

MGT4024XB-R15 Protechnic 24VDC 0.268m³/min 9.46CFM 66.71Pa 0.268inH2O 7200RPM 0.1A 2.4W 33.2dB(A) 40x40x15mm Ball Bearing 3 Wire Leads DC Axial Fan
Specifications
| Model Number | MGT4024XB-R15 |
|---|---|
| Manufacturer | Protechnic Electric |
| Fan Type | DC |
| Voltage Rating | 24 VDC |
| Air Flow CMM | 0.268 m³/min |
| Air Flow | 9.46 CFM |
| Static Pressure Pa | 66.71 Pa |
| Static Pressure mmAq | 6.8 mmAq |
| Static Pressure | 0.268 in H2O |
| Fan Speed | 7200 RPM |
| Current Rating | 0.1 A |
| Actual Current | 0.07 A |
| Power Rating | 2.4 W |
| Actual Power | 1.68 W |
| Noise Level | 33.2 dB(A) |
| Weight | 22 g |
| Dimensions | 40x40x15 mm |
| Bearing Type | Ball Bearing |
| Material Blade | Plastic |
| Material Frame | Plastic |
| Lifetime @ Temp | 40000 Hrs @ 60°C |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Storage Temperature | -40℃～70℃(5%～95% RH) |
| Approval Agency | CE, TUV, UL |
| Termination | 3 Wire Leads |
| Category | Axial Fan |
| Features | Rotate detection,automatic restart,locked current protection |
| series | 40*40*15mm seriesC / seriesD |
