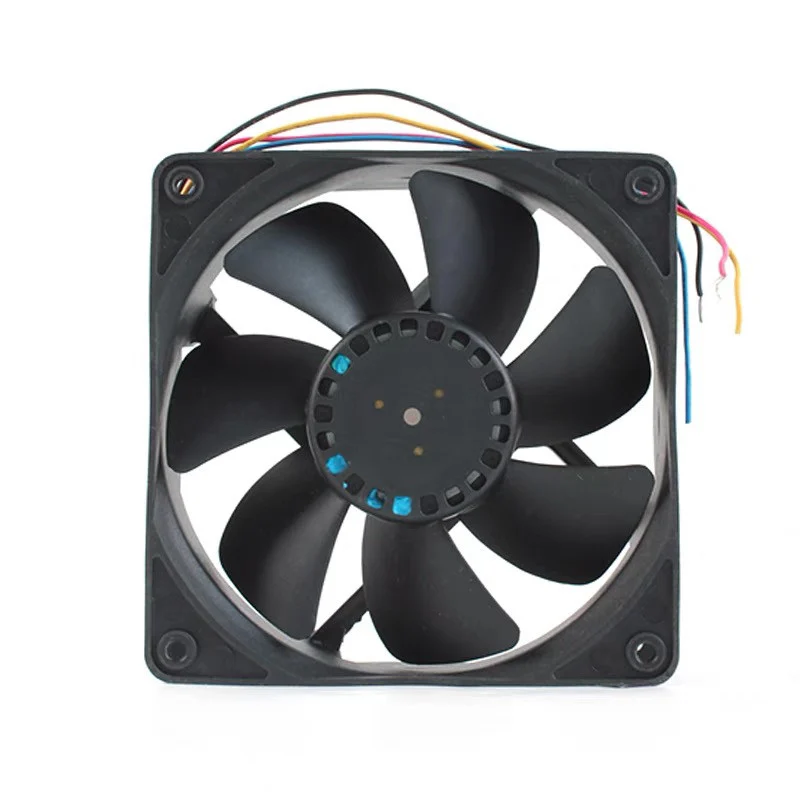

MGT12024UB-W38 Protechnic

$13.99

SKU: MGT12024UB-W38

Description

MGT12024UB-W38 Protechnic 24VDC 5.463m³/min 192.9CFM 142.25Pa 0.571inH2O 4000RPM 1.3A 31.2W 57dB(A) 120x120x38mm Ball Bearing 3 Wire Leads DC Axial Fan

Specifications

Model Number

MGT12024UB-W38

Actual Power

13.63 W

Fan Type

DC

Voltage Rating

24 VDC

Air Flow CMM

5.463 m³/min

Air Flow

192.9 CFM

Static Pressure Pa

142.25 Pa

Static Pressure mmAq

14.5 mmAq

Static Pressure

0.571 in H2O

Fan Speed

4000 RPM

Current Rating

1.3 A

Actual Current

0.57 A

Power Rating

31.2 W

Manufacturer

Protechnic Electric

Weight

300 g

Noise Level

57 dB(A)

Dimensions

120x120x38 mm

Bearing Type

Ball Bearing

Material Blade

Plastic

Material Frame

Plastic

Lifetime @ Temp

40000 Hrs @ 60°C

Operating Temperature

14 ~ 158°F (-10 ~ 70°C)

Storage Temperature

-40℃~70℃(5%~95% RH)

Approval Agency

CE, TUV, UL

Termination

3 Wire Leads

Category

Axial Fan

Features

Pulse width modulation,automatic restart,locked current protection(PWM)

series

120*120*38mm seriesA
