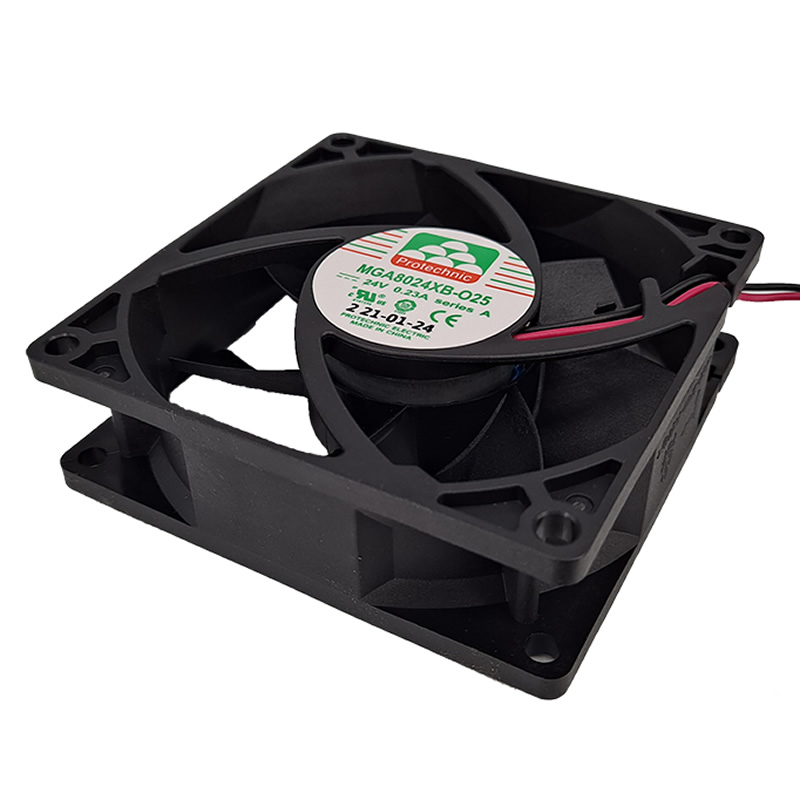

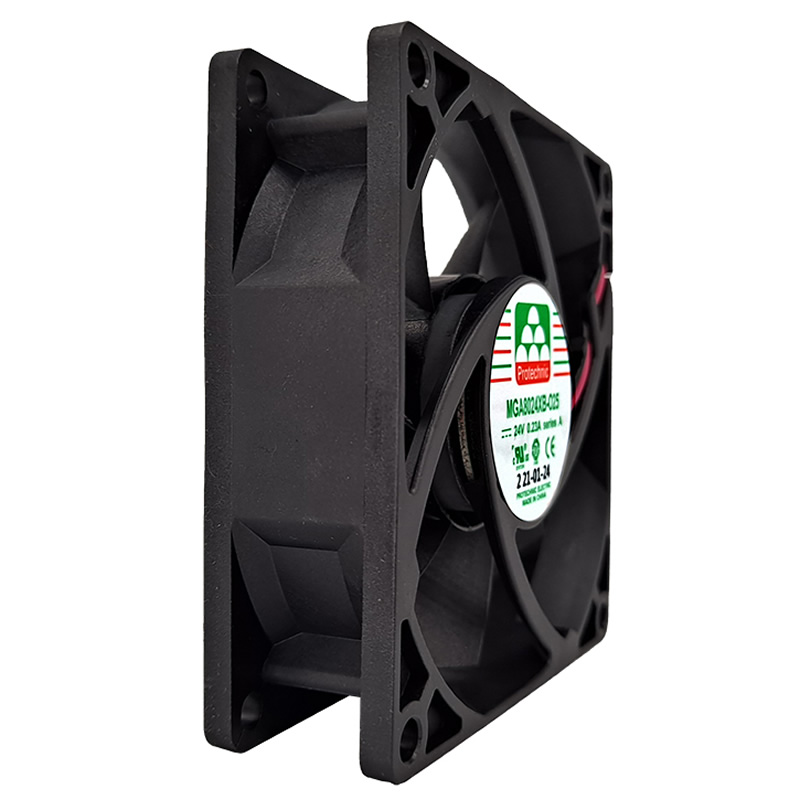

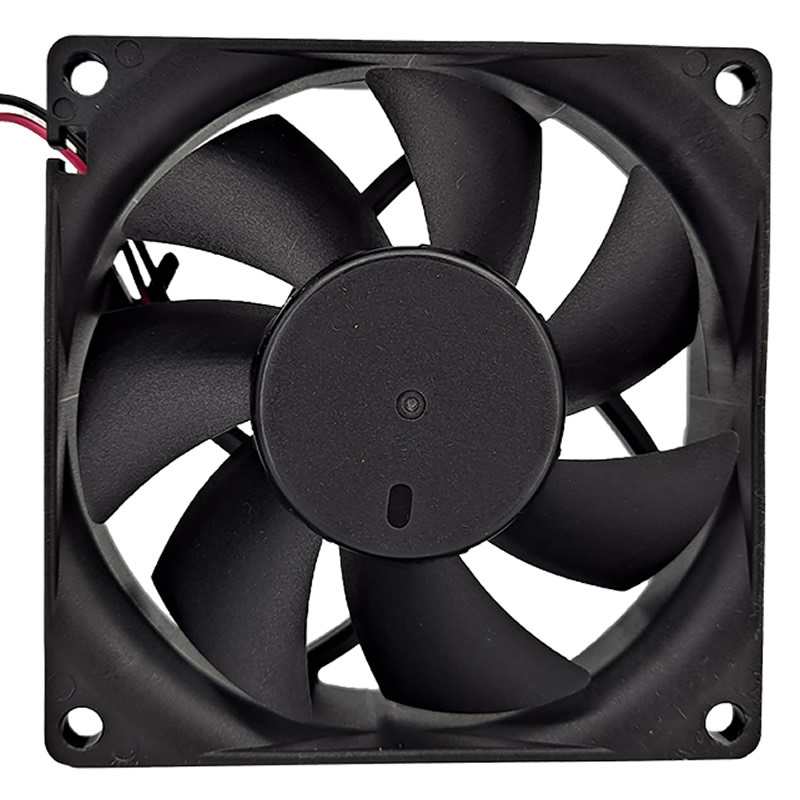

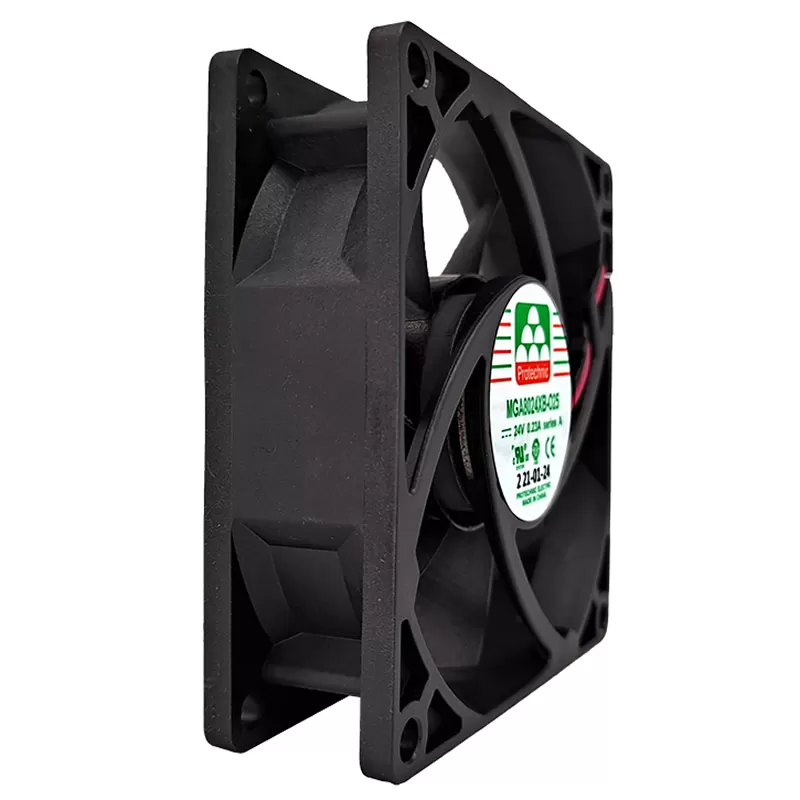

MGA8024XB-O25 Protechnic

$6.99

x
SKU: MGA8024XB-O25

Description

MGA8024XB-O25 Protechnic 24VDC 1.291m³/min 45.57CFM 57.39Pa 0.23inH2O 3600RPM 0.23A 5.52W 39.5dB(A) 80x80x25mm Ball Bearing 2 Wire Leads DC Axial Fan

Specifications

Model Number

MGA8024XB-O25

Actual Power

2.16 W

Fan Type

DC

Voltage Rating

24 VDC

Air Flow CMM

1.291 m³/min

Air Flow

45.57 CFM

Static Pressure Pa

57.39 Pa

Static Pressure mmAq

5.85 mmAq

Static Pressure

0.23 in H2O

Fan Speed

3600 RPM

Current Rating

0.23 A

Actual Current

0.09 A

Power Rating

5.52 W

Manufacturer

Protechnic Electric

Weight

74 g

Noise Level

39.5 dB(A)

Dimensions

80x80x25 mm

Bearing Type

Ball Bearing

Material Blade

Plastic

Material Frame

Plastic

Lifetime @ Temp

40000 Hrs @ 60°C

Operating Temperature

14 ~ 158°F (-10 ~ 70°C)

Storage Temperature

-40℃~70℃(5%~95% RH)

Approval Agency

CE, TUV, UL

Termination

2 Wire Leads

Category

Axial Fan

Features

Automatic restart,locked current protection

series

80*80*25mm seriesA
