Description

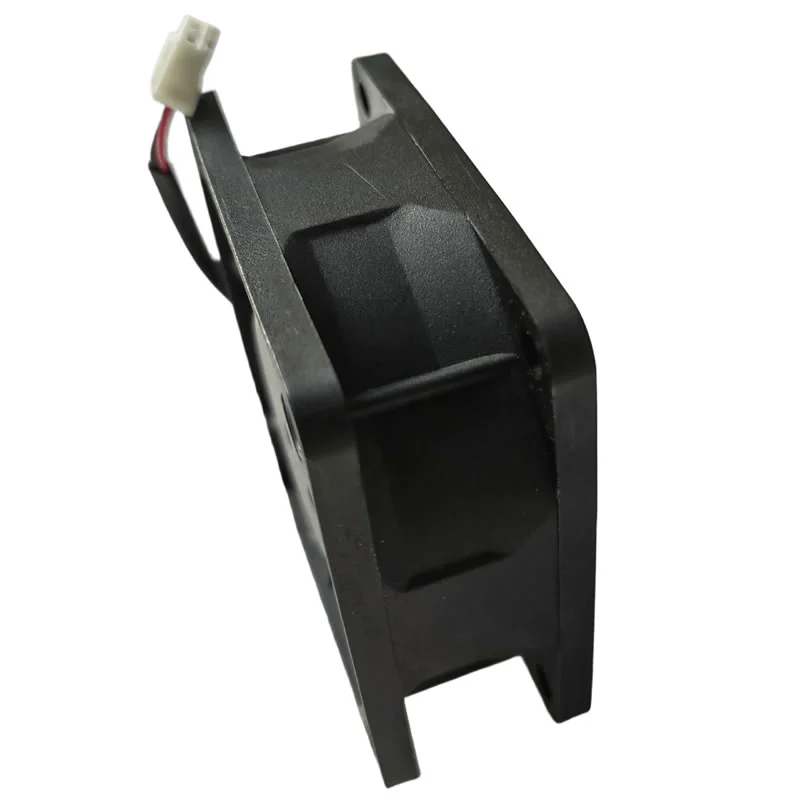

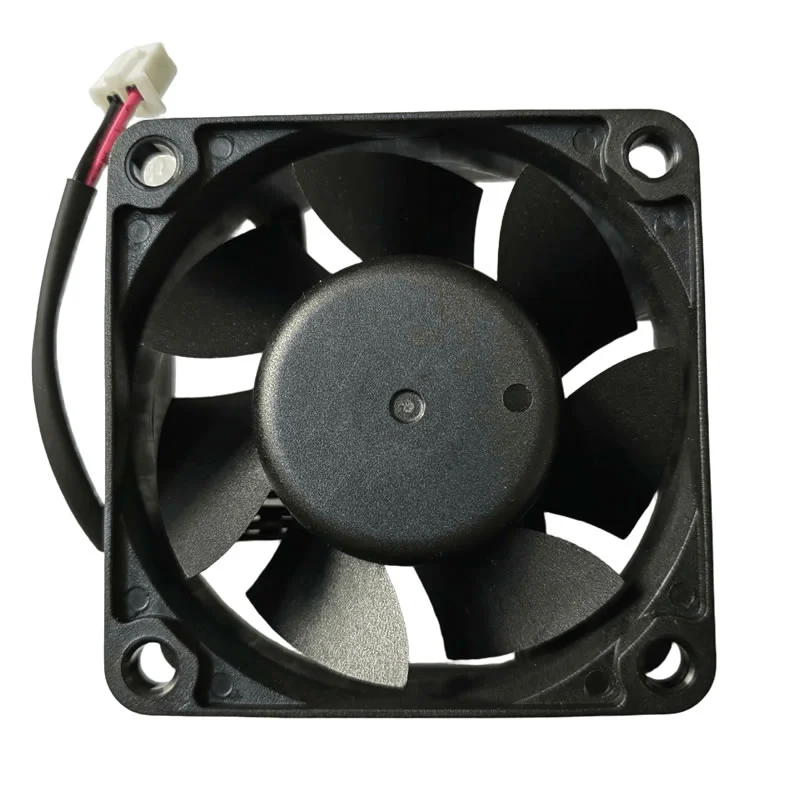

MGA6012UB-O25 Protechnic 12VDC 1.006m³/min 35.5CFM 123.61Pa 0.496inH2O 6800RPM 0.38A 4.56W 43.1dB(A) 60x60x25mm Ball Bearing 2 Wire Leads DC Axial Fan
Specifications
| Model Number | MGA6012UB-O25 |
|---|---|
| Actual Power | 2.64 W |
| Fan Type | DC |
| Voltage Rating | 12 VDC |
| Air Flow CMM | 1.006 m³/min |
| Air Flow | 35.5 CFM |
| Static Pressure Pa | 123.61 Pa |
| Static Pressure mmAq | 12.6 mmAq |
| Static Pressure | 0.496 in H2O |
| Fan Speed | 6800 RPM |
| Current Rating | 0.38 A |
| Actual Current | 0.22 A |
| Power Rating | 4.56 W |
| Manufacturer | Protechnic Electric |
| Weight | 59 g |
| Noise Level | 43.1 dB(A) |
| Dimensions | 60x60x25 mm |
| Bearing Type | Ball Bearing |
| Material Blade | Plastic |
| Material Frame | Plastic |
| Lifetime @ Temp | 40000 Hrs @ 60°C |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Storage Temperature | -40℃～70℃(5%～95% RH) |
| Approval Agency | CE, TUV, UL |
| Termination | 2 Wire Leads |
| Category | Axial Fan |
| Features | Automatic restart,locked current protection |
| series | 60*60*25mm seriesA |
