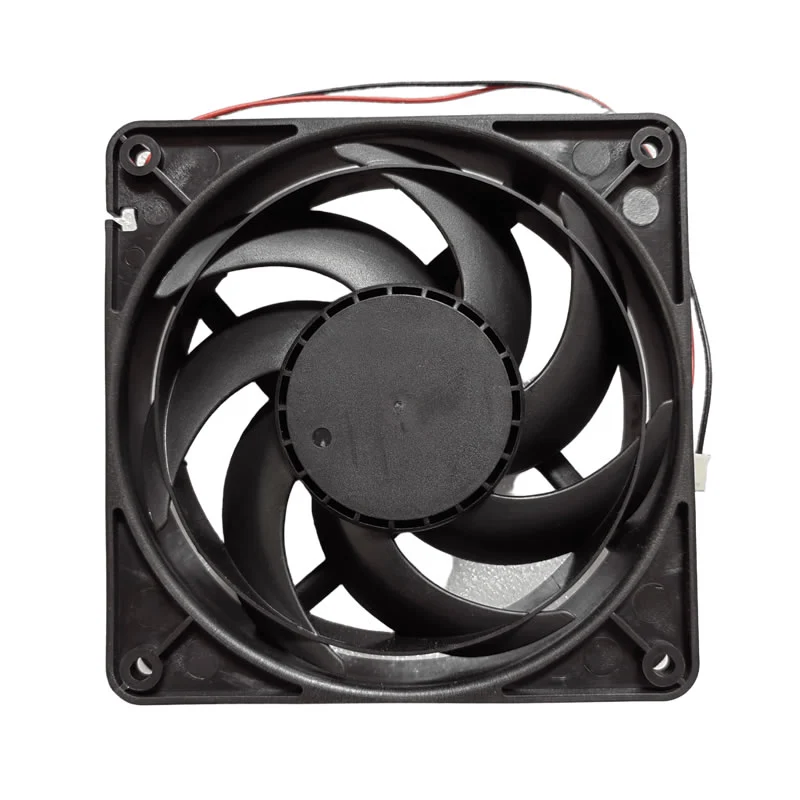

MGA12012YB-O25 Protechnic

$13.99

SKU: MGA12012YB-O25

Description

MGA12012YB-O25 Protechnic 12VDC 4.06m³/min 143.32CFM 122.63Pa 0.492inH2O 5000RPM 1.2A 14.4W 58dB(A) 120x120x25mm Ball Bearing 2 Wire Leads DC Axial Fan

Specifications

Model Number

MGA12012YB-O25

Actual Power

9.396 W

Fan Type

DC

Voltage Rating

12 VDC

Air Flow CMM

4.06 m³/min

Air Flow

143.32 CFM

Static Pressure Pa

122.63 Pa

Static Pressure mmAq

12.5 mmAq

Static Pressure

0.492 in H2O

Fan Speed

5000 RPM

Current Rating

1.2 A

Actual Current

0.783 A

Power Rating

14.4 W

Manufacturer

Protechnic Electric

Weight

200 g

Noise Level

58 dB(A)

Dimensions

120X120X25 mm

Bearing Type

Ball Bearing

Material Blade

Plastic

Material Frame

Plastic

Lifetime @ Temp

40000 Hrs @ 60°C

Operating Temperature

14 ~ 158°F (-10 ~ 70°C)

Storage Temperature

-40℃~70℃(5%~95% RH)

Approval Agency

CE, TUV, UL

Termination

2 Wire Leads

Category

Axial Fan

Features

Automatic restart,locked current protection

series

120*120*25mm seriesA
