Description

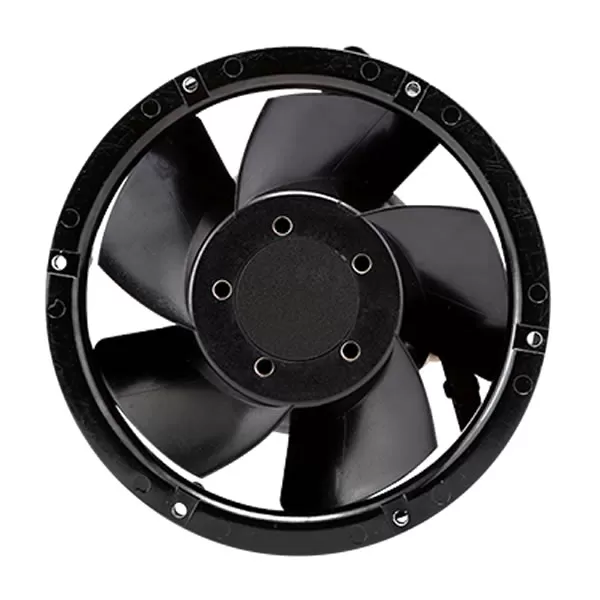

MFXE24Z3E2X-E2 Comair Rotron 17001592A 172x51mm 24VDC 3.10A 74.4W 5400RPM 394CFM 669.4m³/h 72dB(A) Ball 2.37inH2O 589Pa 4 Wire Leads Mixflow fan
Specifications
| Model Number | MFXE24Z3E2X-E2 |
|---|---|
| Air Flow | 394 CFM |
| Weight | 1000 g |
| Manufacturer | Comair Rotron |
| Series | Mixtus 6.8 DC |
| Dimensions | 172×51 mm |
| Voltage Rating | 24 VDC |
| Fan Type | DC |
| Operating Voltage | 16 – 32VDC |
| Current Rating | 3.10 A |
| Power Rating | 74.4 W |
| Fan Speed | 5400 RPM |
| Air Flow (m3) | 669.4 m³/h |
| Bearing Type | Ball Bearing |
| Part Number | 17001592A |
| Noise Level | 72 dB(A) |
| Static Pressure | 2.37 in H2O |
| Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
| Storage Temperature | -40°C to 85°C |
| Approval Agency | CE, cUL, UL |
| Lifetime @ Temp | 75000 Hrs @ 40°C |
| Propeller | Plastic, Black, UL 94V-0 |
| Venturi | Die Cast Aluminum |
| Termination | 4 Wire Leads |
| Category | Mixflow |
| Static Pressure Pa | 589 Pa |
