Description

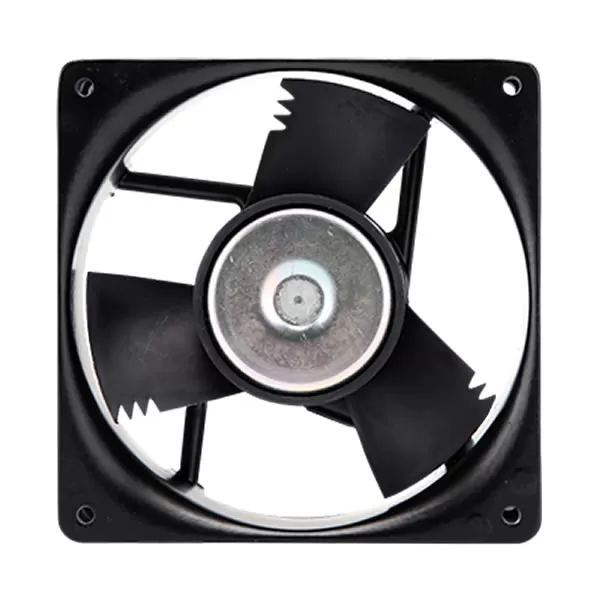

MDD24K1A5-E2 Comair Rotron 17001594A 120x120x39mm 24VDC 0.34A 8.2W 3650RPM 125CFM 212.4m³/h 53.5dB(A) Ball 0.37inH2O 93Pa 4 Wire Leads Axial DC fan
Specifications
| Model Number | MDD24K1A5-E2 |
|---|---|
| Air Flow | 125 CFM |
| Weight | 420 g |
| Manufacturer | Comair Rotron |
| Series | Muffin XL DC |
| Dimensions | 120x120x39 mm |
| Voltage Rating | 24 VDC |
| Fan Type | DC |
| Operating Voltage | 16-32VDC |
| Current Rating | 0.34 A |
| Power Rating | 8.2 W |
| Fan Speed | 3650 RPM |
| Air Flow (m3) | 212.4 m³/h |
| Bearing Type | Ball Bearing |
| Part Number | 17001594A |
| Noise Level | 53.5 dB(A) |
| Static Pressure | 0.37 in H2O |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Storage Temperature | -40°C to 85°C |
| Approval Agency | CE, cUL, UL |
| Lifetime @ Temp | 55000 Hrs @ 70°C |
| Propeller | Plastic, Black, UL 94V-0 |
| Venturi | Die-Cast Aluminum |
| Termination | 4 Wire Leads |
| Category | Axial DC |
| Static Pressure Pa | 93 Pa |
