Description

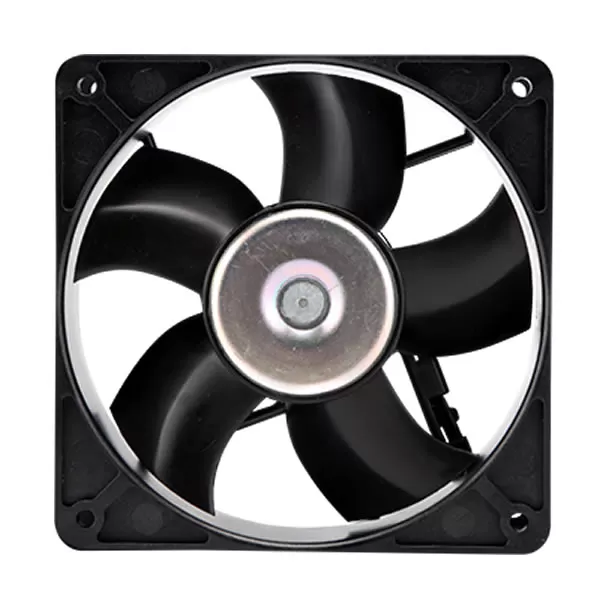

MC12Z3 Comair Rotron 17000272A 120x120x32mm 12VDC 1.00A 12W 4500RPM 122CFM 207.3m³/h 52dB(A) Ball 0.51inH2O 126Pa 2 Wire Leads Axial DC fan
Specifications
| Model Number | MC12Z3 |
|---|---|
| Air Flow | 122 CFM |
| Weight | 240 g |
| Manufacturer | Comair Rotron |
| Series | Muffin DC |
| Dimensions | 120x120x32 mm |
| Voltage Rating | 12 VDC |
| Fan Type | DC |
| Operating Voltage | 6 – 14VDC |
| Current Rating | 1.00 A |
| Power Rating | 12 W |
| Fan Speed | 4500 RPM |
| Air Flow (m3) | 207.3 m³/h |
| Bearing Type | Ball Bearing |
| Part Number | 17000272A |
| Noise Level | 52 dB(A) |
| Static Pressure | 0.51 in H2O |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Storage Temperature | -40°C to 85°C |
| Approval Agency | CE, cUL, UL |
| Lifetime @ Temp | 45000 Hrs @ 70°C |
| Propeller | Plastic, Black, UL 94V-0 |
| Venturi | Plastic, Black, UL 94V-0 |
| Termination | 2 Wire Leads |
| Category | Axial DC |
| Static Pressure Pa | 126 Pa |
