Description

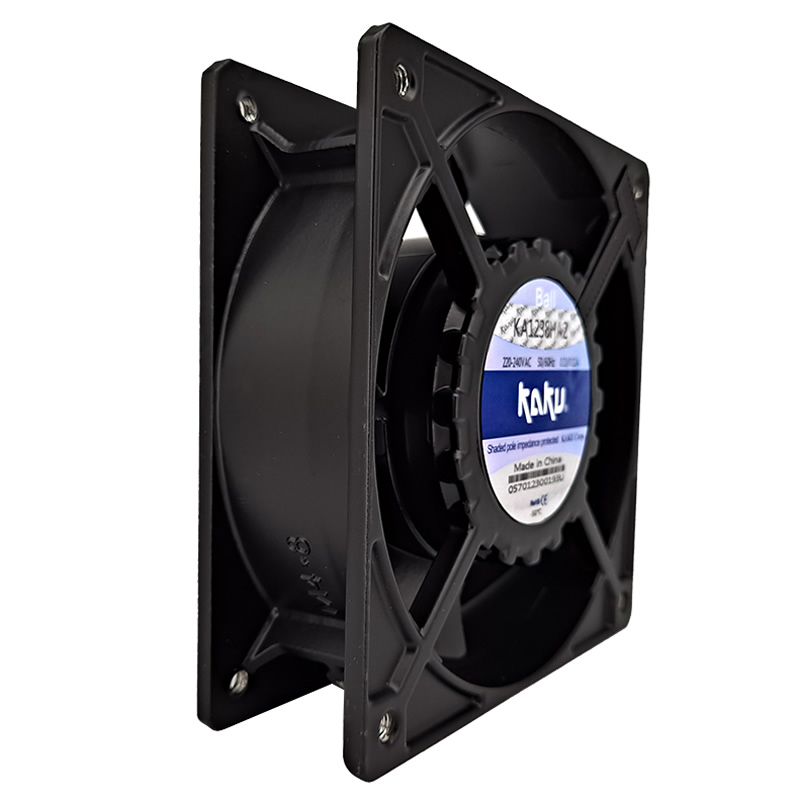

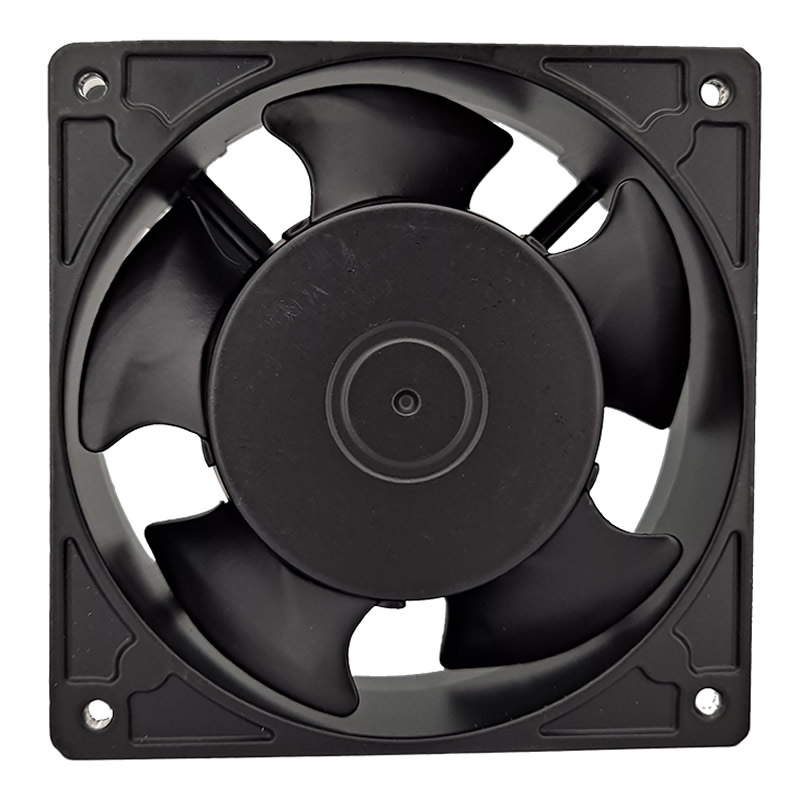

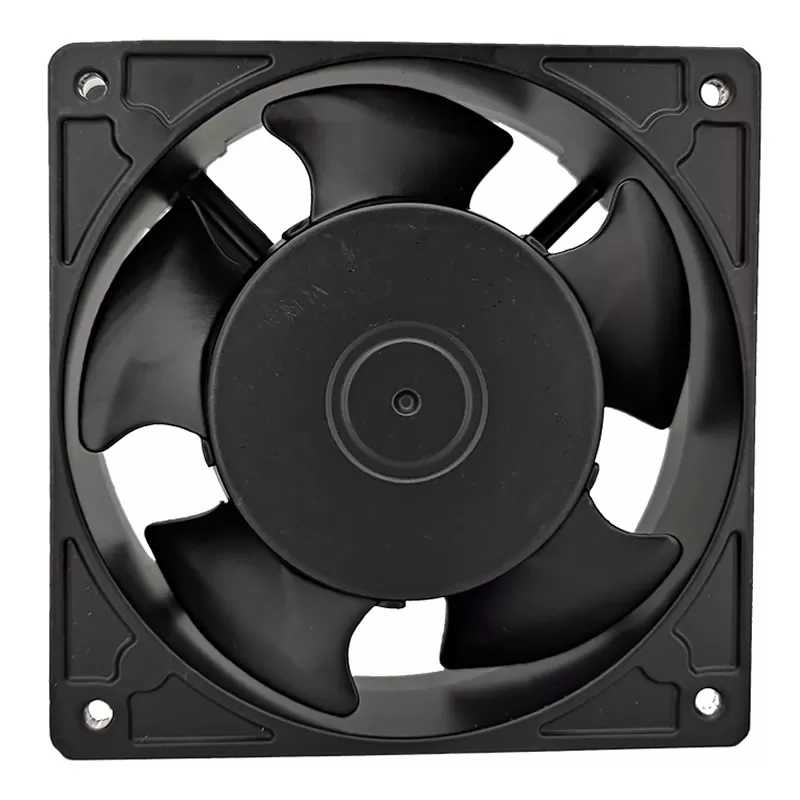

KA1238HA2 KAKU 120x120x38mm 50Hz/60Hz 220~240VAC 0.11A/0.13A 18W/21W 2700RPM/3100RPM 100CFM/84CFM 49 dB(A) IP55 2 Terminals axial fan

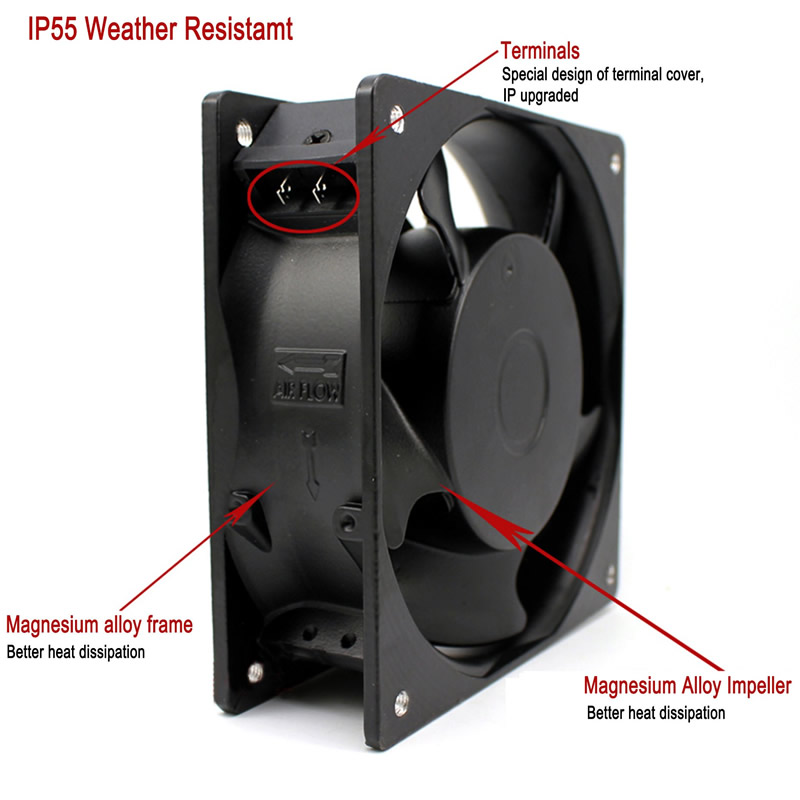

The series of clamped axial flow fans using magnesium alloy frames, the new KAKU axial flow fan KA1238HA2 (IP55), shaded pole outer wound inner rotor fan has unique product features and excellent quality: this product has ROHS, ULCE, TUV, EMC, -40 ℃ (Pc fan blade), -5OC (Mg fan blade) and other international certifications, and has passed the SGS test, with a dustproof and waterproof rating of IP55!
Advantages
◆This fan is specially designed and developed for wet and dusty environments. Its waterproof and dustproof parameters meet the IP55 protection level standard; in addition, it can also meet the waterproof requirements of customers in different occasions, and can be used in dusty environments. used below;
◆The magnesium alloy fan blades have good heat dissipation performance, which can effectively reduce the ambient temperature of the fan bearing and extend the service life of the fan;
◆The entire series of fans are made of lead-free materials, comply with environmental protection requirements, and have passed ROHS certification.
Specifications
| Model | KA1238HA2 |
|---|---|
| Manufacturer | KAKU |
| Dimensions | 120x120x38 mm |
| Bearing Type | Ball Bearing |
| Fan Type | AC |
| Frequency | 50 Hz, 60 Hz |
| Voltage Rating | 220 ~ 240 VAC |
| Current Rating | 0.11 A, 0.13 A |
| Power Rating | 18 W, 21 W |
| Fan Speed | 2700 RPM, 3100 RPM |
| Air Flow | 100 CFM, 84 CFM |
| Static Pressure | 0.28 in H2O, 0.34 in H2O |
| Noise Level | 49 dB(A) |
| IP Rating | IP55 |
| Number of blades | 5 |
| RoHS Status | ROHS3 Compliant |
| Approval Agency | CE, EAC, TUV, UL |
| Termination | 2 Terminals |
| Subcategory | AC axial fan |
