Description

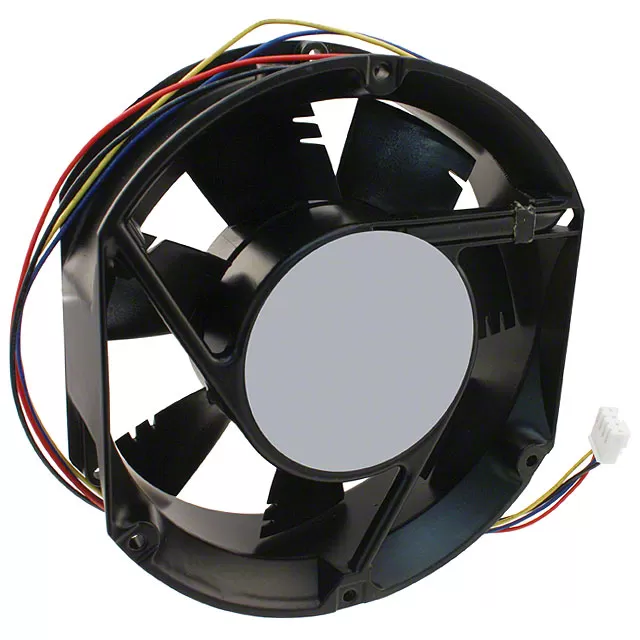

JQD24K3E Comair Rotron 19041044A 172x150x51mm 24VDC 1.10A 26.4W 4200RPM 285CFM 484.2m³/h 58.9dB(A) Ball 1.08inH2O 269Pa 3Leadwires Axial DC fan
Specifications
| Model Number | JQD24K3E |
|---|---|
| Air Flow | 285 CFM |
| Weight | 840 g |
| Manufacturer | Comair Rotron |
| Series | Major DC |
| Dimensions | 172x150x51 mm |
| Voltage Rating | 24 VDC |
| Fan Type | DC |
| Operating Voltage | 16 – 32VDC |
| Current Rating | 1.10 A |
| Power Rating | 26.4 W |
| Fan Speed | 4200 RPM |
| Air Flow (m3) | 484.2 m³/h |
| Bearing Type | Ball Bearing |
| Part Number | 19041044A |
| Noise Level | 58.9 dB(A) |
| Static Pressure | 1.08 in H2O |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Storage Temperature | -40°C to 85°C |
| Approval Agency | CE, cUL, UL |
| Lifetime @ Temp | 58000 Hrs @ 70°C |
| Propeller | Plastic, Black, UL 94V-0 |
| Venturi | Die-Cast Aluminum |
| Termination | 3 Wire Leads |
| Category | Axial DC |
| Static Pressure Pa | 269 Pa |
