Description

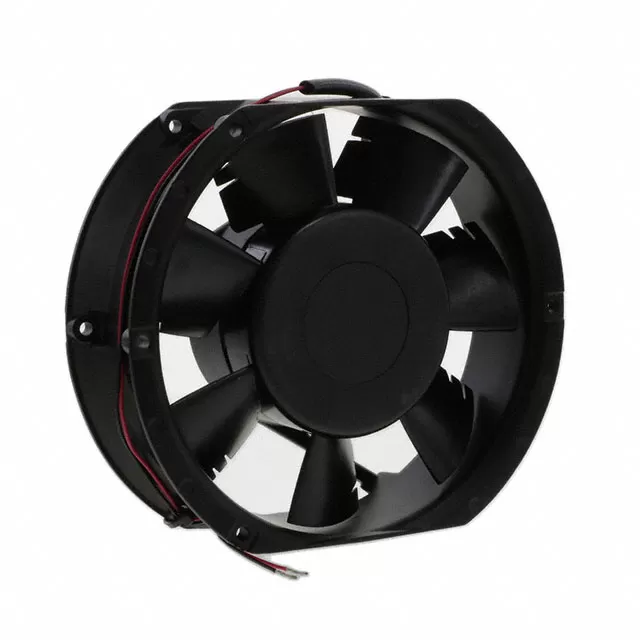

JQD24B3-E3 Comair Rotron 17001202A 172x150x51mm 24VDC 1.00A 24W 3400RPM 235CFM 399.3m³/h 54.3dB(A) Ball 0.83inH2O 207Pa 2 Wire Leads Axial DC fan
Specifications
| Model Number | JQD24B3-E3 |
|---|---|
| Air Flow | 235 CFM |
| Weight | 840 g |
| Manufacturer | Comair Rotron |
| Series | Major DC |
| Dimensions | 172x150x51 mm |
| Voltage Rating | 24 VDC |
| Fan Type | DC |
| Operating Voltage | 16 – 32VDC |
| Current Rating | 1.00 A |
| Power Rating | 24 W |
| Fan Speed | 3400 RPM |
| Air Flow (m3) | 399.3 m³/h |
| Bearing Type | Ball Bearing |
| Part Number | 17001202A |
| Noise Level | 54.3 dB(A) |
| Static Pressure | 0.83 in H2O |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Storage Temperature | -40°C to 85°C |
| Approval Agency | CE, cUL, UL |
| Lifetime @ Temp | 58000 Hrs @ 70°C |
| Propeller | Plastic, Black, UL 94V-0 |
| Venturi | Die-Cast Aluminum |
| Termination | 2 Wire Leads |
| Category | Axial DC |
| Static Pressure Pa | 207 Pa |
