Description

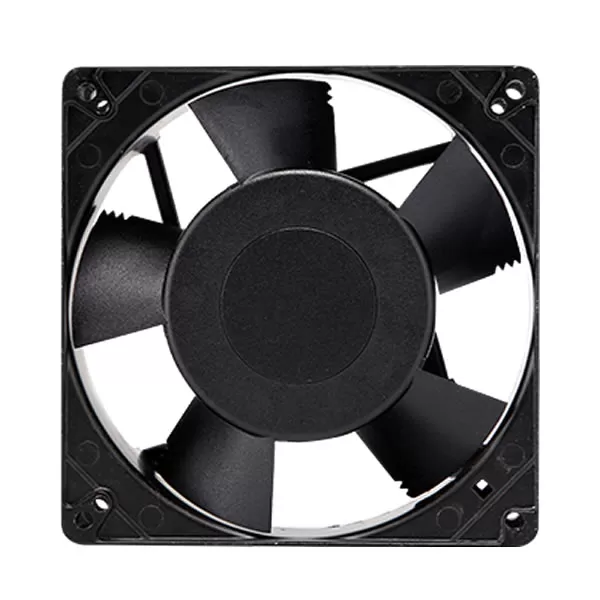

GLD24U3E2 Comair Rotron 19040409A 120x120x39mm 24VDC 1.63A 39.1W 5200RPM 240CFM 407.8m³/h 65dB(A) Ball 1.25inH2O 311Pa 4 Wire Leads Axial DC fan
Specifications
| Model Number | GLD24U3E2 |
|---|---|
| Air Flow | 240 CFM |
| Weight | 420 g |
| Manufacturer | Comair Rotron |
| Series | Galaxy DC |
| Dimensions | 120x120x39 mm |
| Voltage Rating | 24 VDC |
| Fan Type | DC |
| Operating Voltage | 12-28VDC |
| Current Rating | 1.63 A |
| Power Rating | 39.1 W |
| Fan Speed | 5200 RPM |
| Air Flow (m3) | 407.8 m³/h |
| Bearing Type | Ball Bearing |
| Part Number | 19040409A |
| Noise Level | 65 dB(A) |
| Static Pressure | 1.25 in H2O |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Storage Temperature | -40°C to 85°C |
| Approval Agency | CE, cUL, UL |
| Lifetime @ Temp | 60000 Hrs @ 70°C |
| Propeller | Plastic, Black, UL 94V-0 |
| Venturi | Die-Cast Aluminum |
| Termination | 4 Wire Leads |
| Category | Axial DC |
| Static Pressure Pa | 311 Pa |
