Description

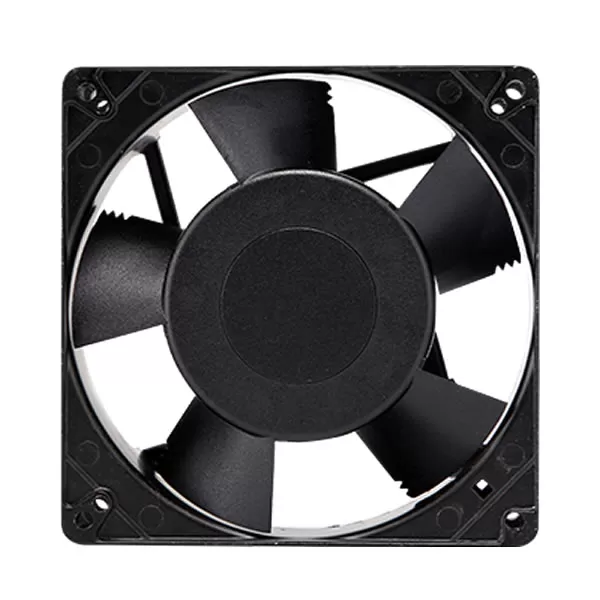

GLD12B3-E3 Comair Rotron 17001207A 120x120x39mm 12VDC 1.30A 15.6W 3300RPM 150CFM 254.7m³/h 53.6dB(A) Ball 0.56inH2O 139Pa 2 Wire Leads Axial DC fan
Specifications
| Model Number | GLD12B3-E3 |
|---|---|
| Air Flow | 150 CFM |
| Weight | 420 g |
| Manufacturer | Comair Rotron |
| Series | Galaxy DC |
| Dimensions | 120x120x39 mm |
| Voltage Rating | 12 VDC |
| Fan Type | DC |
| Operating Voltage | 8 – 16VDC |
| Current Rating | 1.30 A |
| Power Rating | 15.6 W |
| Fan Speed | 3300 RPM |
| Air Flow (m3) | 254.7 m³/h |
| Bearing Type | Ball Bearing |
| Part Number | 17001207A |
| Noise Level | 53.6 dB(A) |
| Static Pressure | 0.56 in H2O |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Storage Temperature | -40°C to 85°C |
| Approval Agency | CE, cUL, UL |
| Lifetime @ Temp | 55000 Hrs @ 70°C |
| Propeller | Plastic, Black, UL 94V-0 |
| Venturi | Die-Cast Aluminum |
| Termination | 2 Wire Leads |
| Category | Axial DC |
| Static Pressure Pa | 139 Pa |
