Description

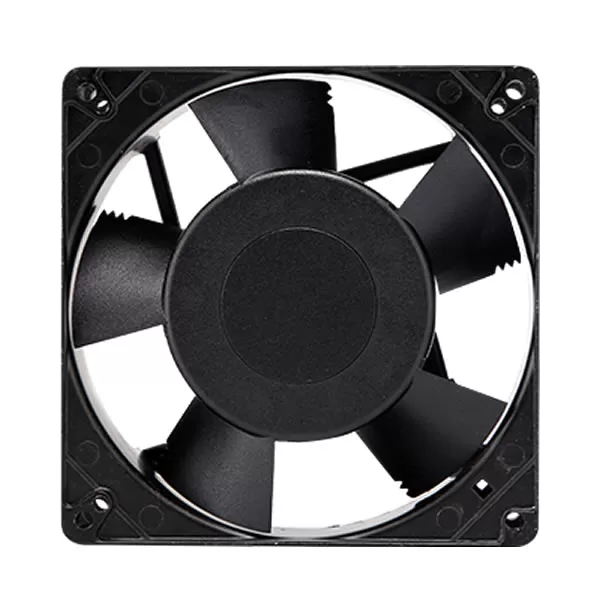

GL48B3 Comair Rotron 17000009A 127x127x38mm 48VDC 0.31A 14.9W 3200RPM 144CFM 244.7m³/h 53.6dB(A) Ball 0.49inH2O 121Pa 2 Wire Leads Axial DC fan
Specifications
| Model Number | GL48B3 |
|---|---|
| Air Flow | 144 CFM |
| Weight | 620 g |
| Manufacturer | Comair Rotron |
| Series | Galaxy DC |
| Dimensions | 127x127x38 mm |
| Voltage Rating | 48 VDC |
| Fan Type | DC |
| Operating Voltage | 24 – 56VDC |
| Current Rating | 0.31 A |
| Power Rating | 14.9 W |
| Fan Speed | 3200 RPM |
| Air Flow (m3) | 244.7 m³/h |
| Bearing Type | Ball Bearing |
| Part Number | 17000009A |
| Noise Level | 53.6 dB(A) |
| Static Pressure | 0.49 in H2O |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Storage Temperature | -40°C to 85°C |
| Approval Agency | CE, cUL, UL |
| Lifetime @ Temp | 60000 Hrs @ 70°C |
| Propeller | Plastic, Black, UL 94V-0 |
| Venturi | Die Cast Aluminum |
| Termination | 2 Wire Leads |
| Category | Axial DC |
| Static Pressure Pa | 121 Pa |
