Description

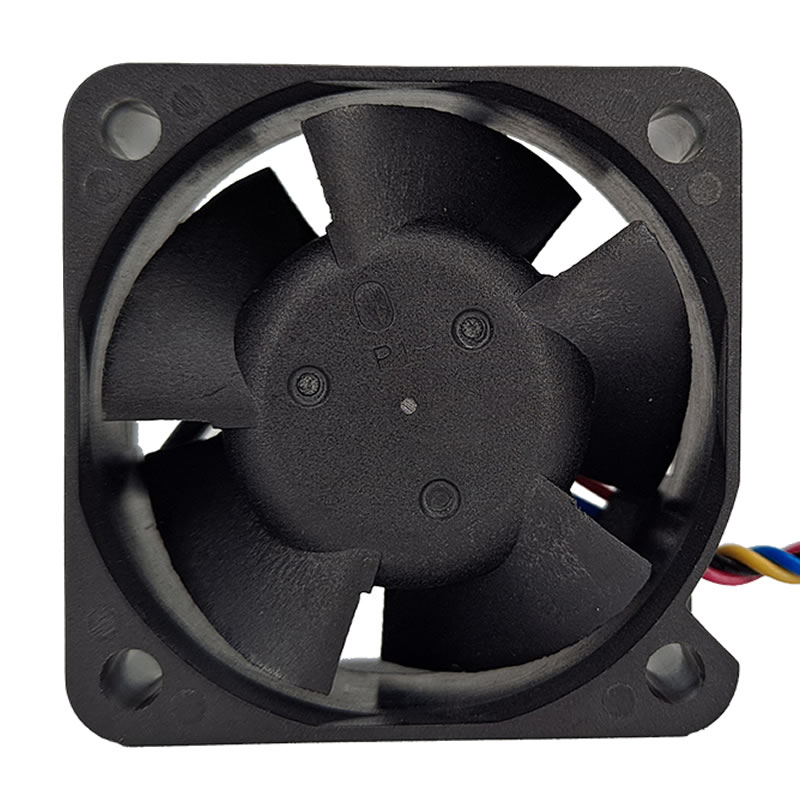

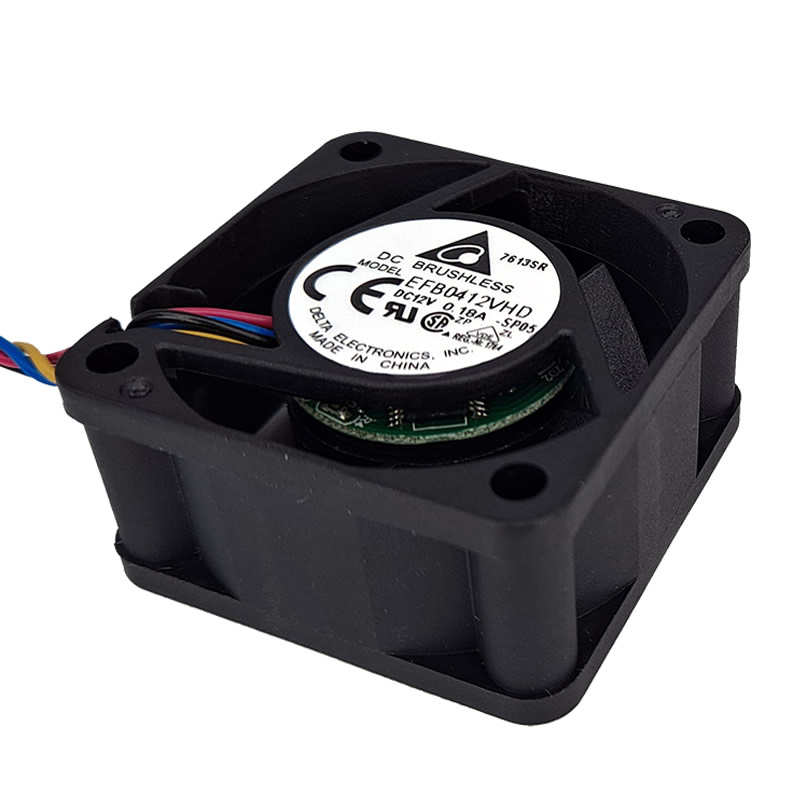

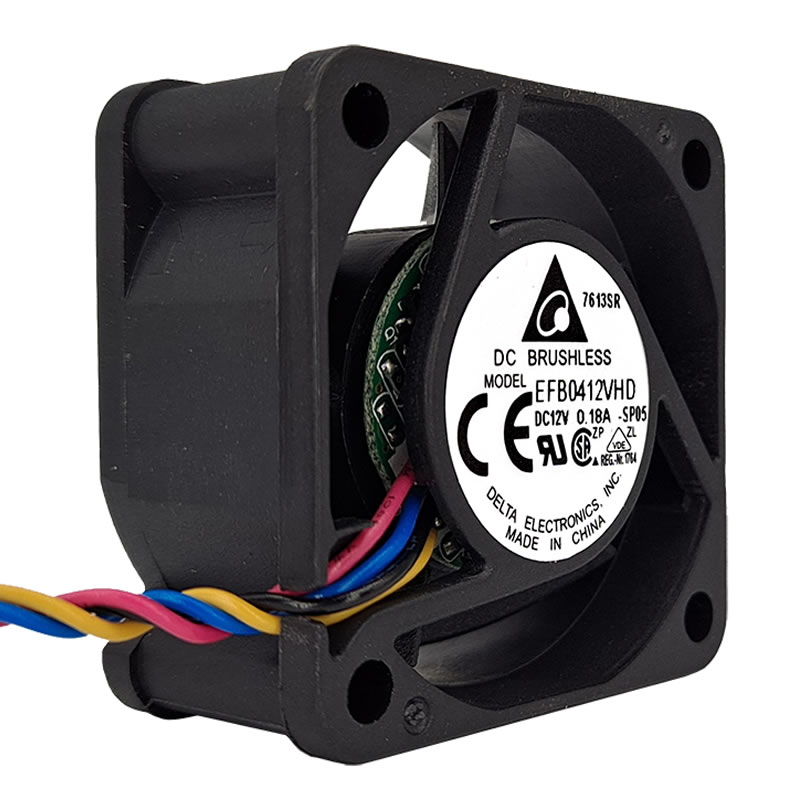

EFB0412VHD-SP05 Delta 40x40x20mm Ball 12VDC 10.10CFM(0.286m3/min) 0.416inchH2O(10.57mmH2O) 34.5dB(A) 1.44W 9000RPM 4wireleads fan
Specifications
| Part Number | EFB0412VHD-SP05 |
|---|---|
| Power Rating | 1.44 W |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Series | EFB |
| Air Flow (m3) | 0.286 m3/min |
| Dimensions | 40x40x20 mm |
| Fan Type | DC |
| Fan Speed | 9000 RPM |
| Manufacturer | Delta Electronics |
| Termination | 4 wire leads |
| Static Pressure | 0.416 inchH2O (10.57 mmH2O) |
| Noise Level | 34.5 dB(A) |
| Air Flow | 10.10 CFM |
| Voltage Rating | 12 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.073 lb (33.11 g) |
| Category | Axial |
| Current Rating | 0.12 A |
| Operating Voltage | 36 ~ 75 VDC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
