Description

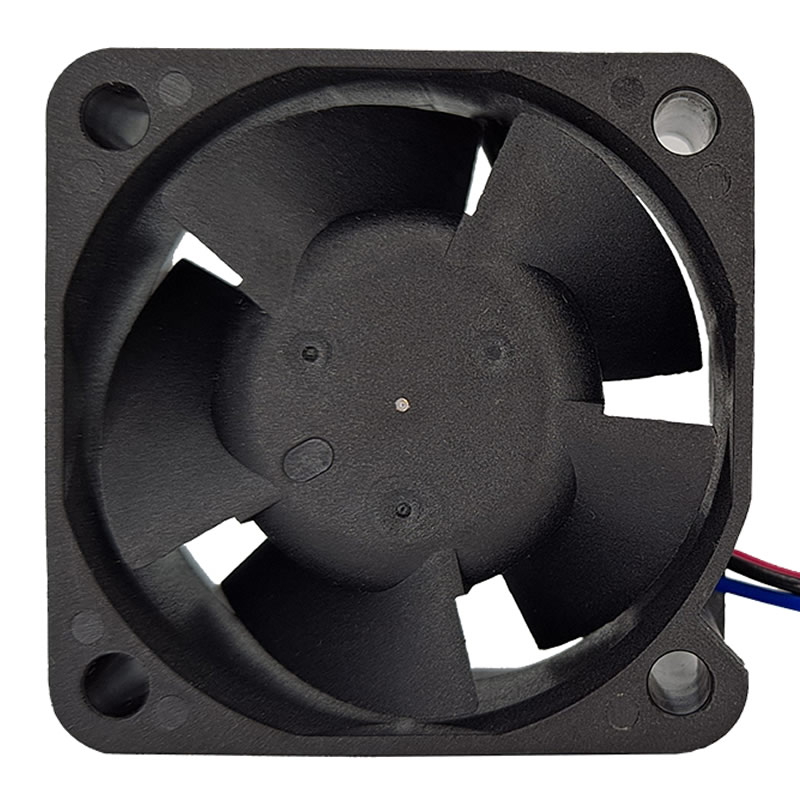

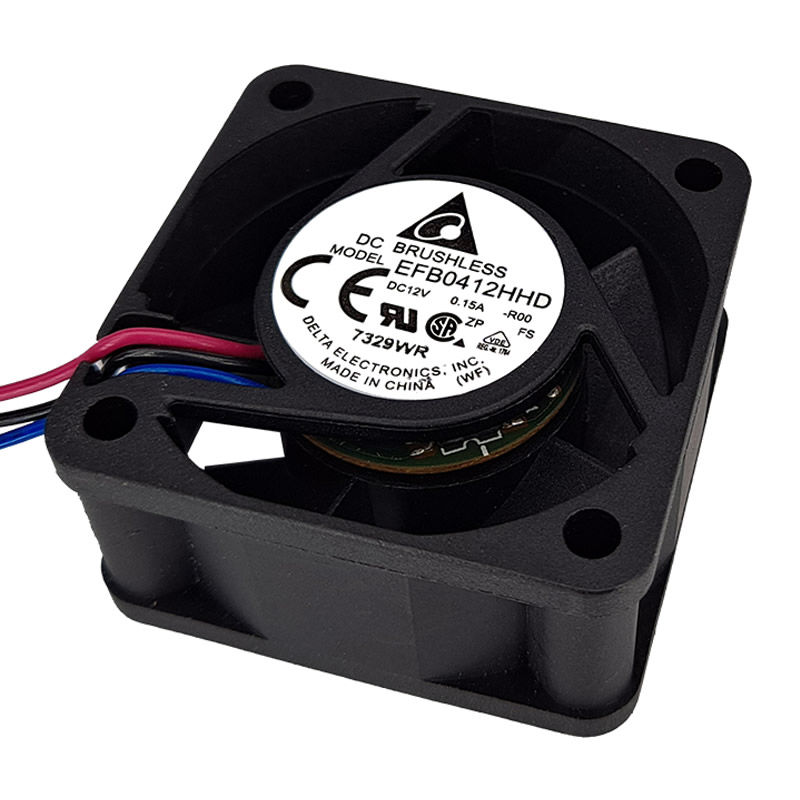

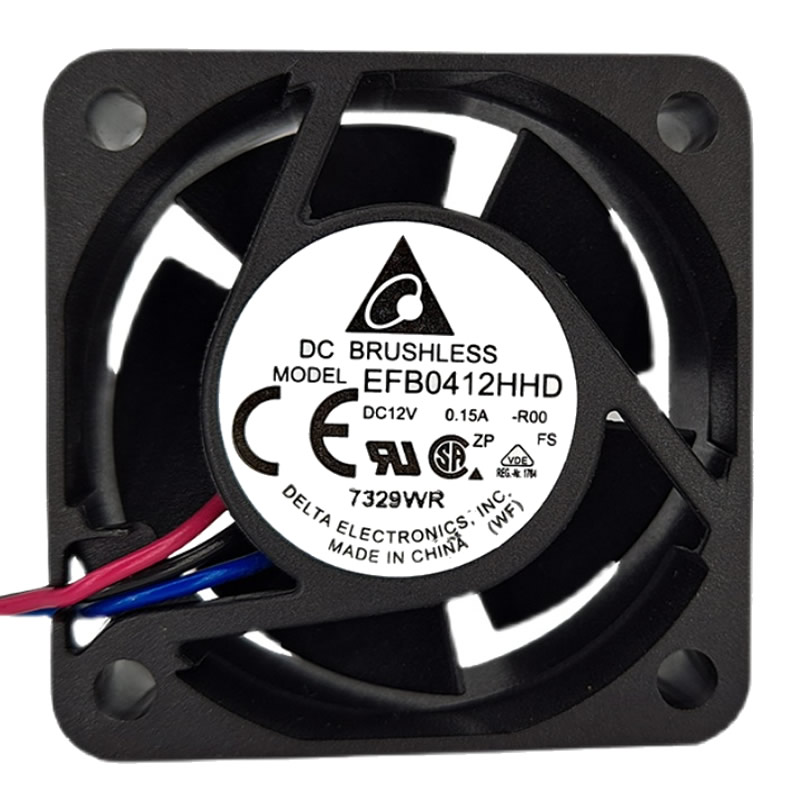

EFB0412HHD-R00 Delta 40x40x20mm Ball 12VDC 0.15A 9.43CFM(0.267m3/min) 30.5dB(A) 1.20W 8200RPM 3wireleads axial fan
Specifications
| Model | EFB0412HHD-R00 |
|---|---|
| Manufacturer | Delta Electronics |
| Dimensions | 40x40x20 mm |
| Fan Type | DC |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Features | Locked Rotor Sensor |
| Series | EFB |
| Air Flow (m3) | 0.267 m3/min |
| Termination | 3 wire leads |
| Fan Speed | 8200 RPM |
| Power Rating | 1.20 W |
| Noise Level | 30.5 dB(A) |
| Air Flow | 9.43 CFM |
| Voltage Rating | 12 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.073 lb (33.11 g) |
| Category | Axial |
| Current Rating | 0.15 A |
| Operating Voltage | 7 ~ 13.8 VDC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
| Number of blades | 5 |
| Subcategory | DC axial fan |
