Description

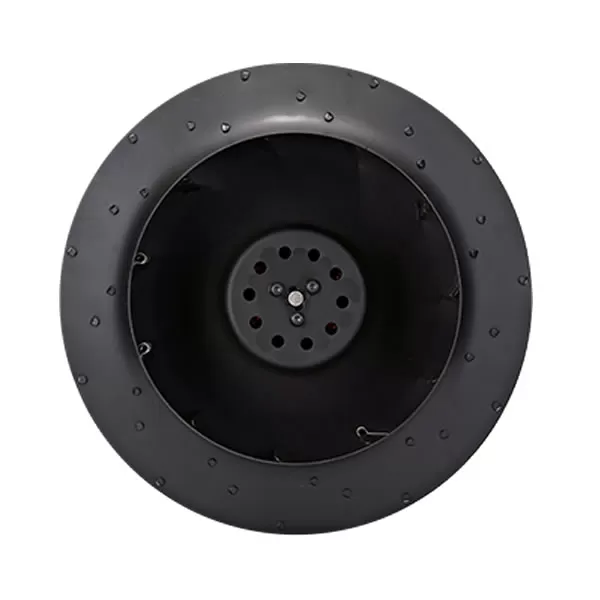

DDE114924K1E Comair Rotron 19040962A 281x125mm 24VDC 5.2A 125W 1900RPM 1070CFM 1818m³/h 78dB(A) Ball 1.86inH2O 463Pa 4 Wire Leads Impeller fan
Specifications
| Model Number | DDE114924K1E |
|---|---|
| Air Flow | 1070 CFM |
| Weight | 2500 g |
| Manufacturer | Comair Rotron |
| Series | DDE1149 |
| Dimensions | 281×125 mm |
| Voltage Rating | 24 VDC |
| Fan Type | DC |
| Operating Voltage | 12 – 32VDC |
| Current Rating | 5.2 A |
| Power Rating | 125 W |
| Fan Speed | 1900 RPM |
| Air Flow (m3) | 1818 m³/h |
| Bearing Type | Ball Bearing |
| Part Number | 19040962A |
| Noise Level | 78 dB(A) |
| Static Pressure | 1.86 in H2O |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Storage Temperature | -40°C to 85°C |
| Approval Agency | CE, cUL, UL |
| Lifetime @ Temp | 42000 Hrs @ 40°C |
| Propeller | Metal, Plated |
| Venturi | Die Cast Aluminum |
| Termination | 4 Wire Leads |
| Category | Impeller |
| Static Pressure Pa | 463 Pa |
