Description

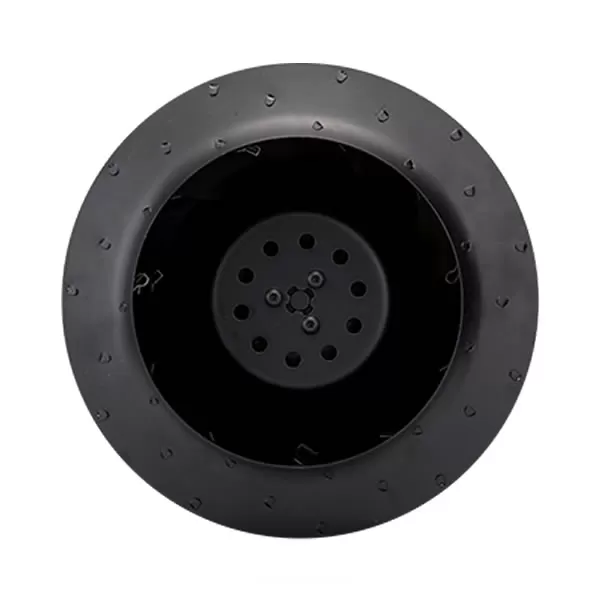

DD893948K1A Comair Rotron 17000286A 230x99mm 48VDC 3.20A 154.8W 2950RPM 724CFM 1230.9m³/h 76.7dB(A) Ball 2.55inH2O 635Pa 3 Wire Leads Impeller fan
Specifications
| Model Number | DD893948K1A |
|---|---|
| Air Flow | 724 CFM |
| Weight | 1700 g |
| Manufacturer | Comair Rotron |
| Series | DD8939 |
| Dimensions | 230×99 mm |
| Voltage Rating | 48 VDC |
| Fan Type | DC |
| Operating Voltage | 24 – 72VDC |
| Current Rating | 3.20 A |
| Power Rating | 154.8 W |
| Fan Speed | 2950 RPM |
| Air Flow (m3) | 1230.9 m³/h |
| Bearing Type | Ball Bearing |
| Part Number | 17000286A |
| Noise Level | 76.7 dB(A) |
| Static Pressure | 2.55 in H2O |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Storage Temperature | -40°C to 85°C |
| Approval Agency | CE, cUL, UL |
| Lifetime @ Temp | 48000 Hrs @ 40°C |
| Propeller | Metal, Plated |
| Venturi | Die Cast Aluminum |
| Termination | 3 Wire Leads |
| Category | Impeller |
| Static Pressure Pa | 635 Pa |
