Description

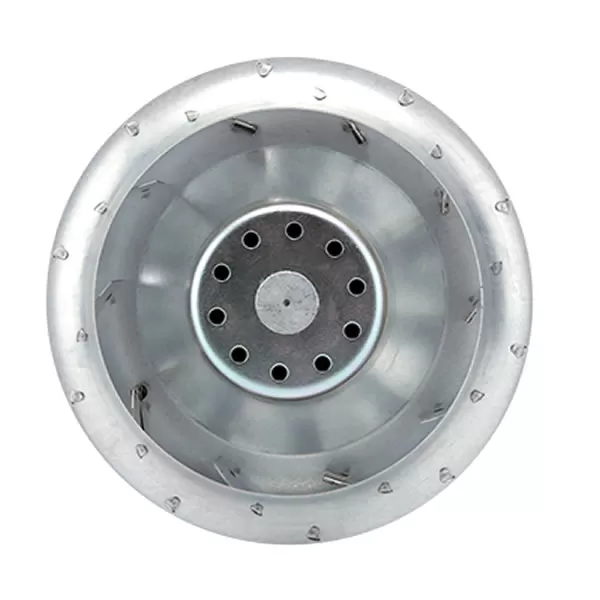

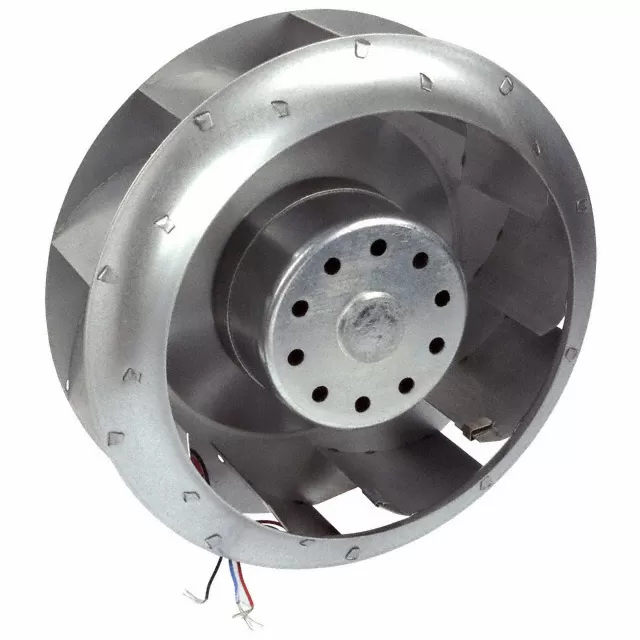

DD692748B1A Comair Rotron 19039849A 175x69mm 48VDC 0.67A 32.2W 2850RPM 275CFM 467.2m³/h 65dB(A) Ball 1.06inH2O 264Pa 3 Wire Leads Impeller fan
Specifications
| Model Number | DD692748B1A |
|---|---|
| Air Flow | 275 CFM |
| Weight | 1100 g |
| Manufacturer | Comair Rotron |
| Series | DD6927 |
| Dimensions | 175×69 mm |
| Voltage Rating | 48 VDC |
| Fan Type | DC |
| Operating Voltage | 24 – 72VDC |
| Current Rating | 0.67 A |
| Power Rating | 32.2 W |
| Fan Speed | 2850 RPM |
| Air Flow (m3) | 467.2 m³/h |
| Bearing Type | Ball Bearing |
| Part Number | 19039849A |
| Noise Level | 65 dB(A) |
| Static Pressure | 1.06 in H2O |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Storage Temperature | -40°C to 85°C |
| Approval Agency | CE, cUL, UL |
| Lifetime @ Temp | 55000 Hrs @ 40°C |
| Propeller | Metal, Plated |
| Venturi | Die Cast Aluminum |
| Termination | 3 Wire Leads |
| Category | Impeller |
| Static Pressure Pa | 264 Pa |
