Description

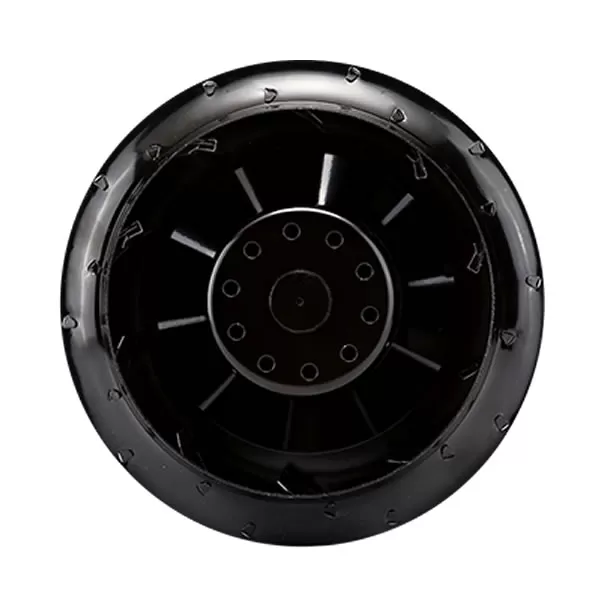

DD692724Z1A Comair Rotron 17000283A 175x69mm 24VDC 2.25A 53.8W 3400RPM 353CFM 600.0m³/h 70.1dB(A) Ball 1.69inH2O 422Pa 3 Wire Leads Impeller fan
Specifications
| Model Number | DD692724Z1A |
|---|---|
| Air Flow | 353 CFM |
| Weight | 1100 g |
| Manufacturer | Comair Rotron |
| Series | DD6927 |
| Dimensions | 175×69 mm |
| Voltage Rating | 24 VDC |
| Fan Type | DC |
| Operating Voltage | 12 – 32VDC |
| Current Rating | 2.25 A |
| Power Rating | 53.8 W |
| Fan Speed | 3400 RPM |
| Air Flow (m3) | 600.0 m³/h |
| Bearing Type | Ball Bearing |
| Part Number | 17000283A |
| Noise Level | 70.1 dB(A) |
| Static Pressure | 1.69 in H2O |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Storage Temperature | -40°C to 85°C |
| Approval Agency | CE, cUL, UL |
| Lifetime @ Temp | 55000 Hrs @ 40°C |
| Propeller | Metal, Plated |
| Venturi | Die Cast Aluminum |
| Termination | 3 Wire Leads |
| Category | Impeller |
| Static Pressure Pa | 422 Pa |
