Description

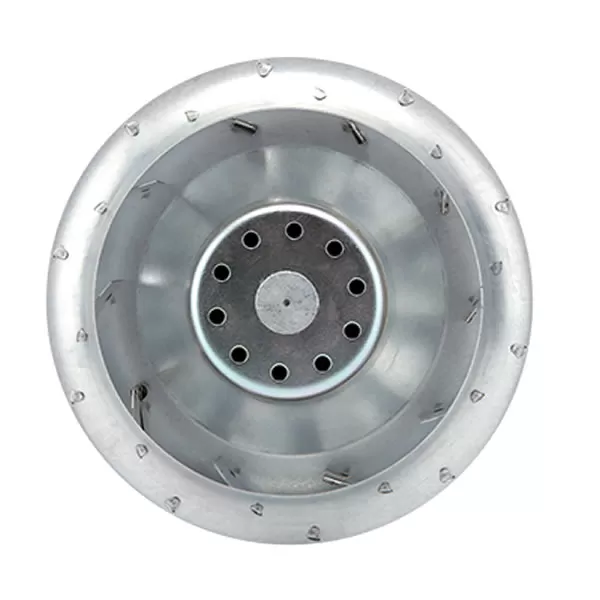

DD692148K1A Comair Rotron 19039843A 175x53mm 48VDC 0.65A 31.2W 3250RPM 250CFM 424.8m³/h 67.2dB(A) Ball 1.59inH2O 396Pa 3 Wire Leads Impeller fan
Specifications
| Model Number | DD692148K1A |
|---|---|
| Air Flow | 250 CFM |
| Weight | 860 g |
| Manufacturer | Comair Rotron |
| Series | DD6921 |
| Dimensions | 175×53 mm |
| Voltage Rating | 48 VDC |
| Fan Type | DC |
| Operating Voltage | 24 – 72VDC |
| Current Rating | 0.65 A |
| Power Rating | 31.2 W |
| Fan Speed | 3250 RPM |
| Air Flow (m3) | 424.8 m³/h |
| Bearing Type | Ball Bearing |
| Part Number | 19039843A |
| Noise Level | 67.2 dB(A) |
| Static Pressure | 1.59 in H2O |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Storage Temperature | -40°C to 85°C |
| Approval Agency | CE, cUL, UL |
| Lifetime @ Temp | 55000 Hrs @ 40°C |
| Propeller | Metal, Plated |
| Venturi | Die Cast Aluminum |
| Termination | 3 Wire Leads |
| Category | Impeller |
| Static Pressure Pa | 396 Pa |
