Description

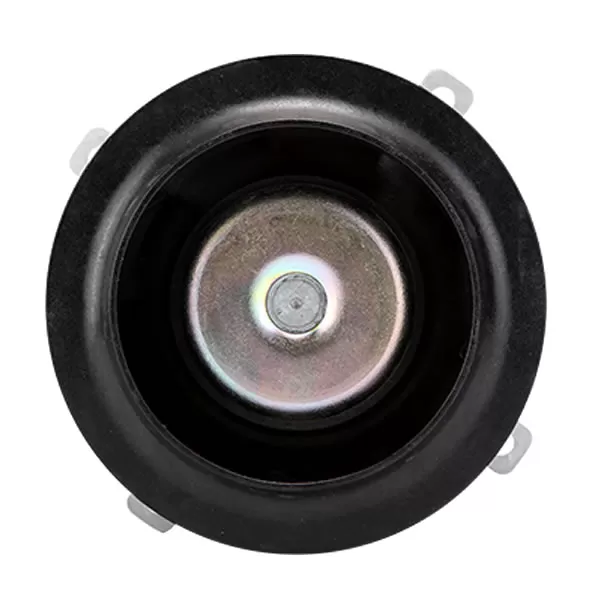

DD402112K1R Comair Rotron 19039823A 118x118x55mm 12VDC 2.75A 33W 5900RPM 116CFM 197.1m³/h 67dB(A) Ball 1.73inH2O 430Pa 3 Wire Leads Impeller fan
Specifications
| Model Number | DD402112K1R |
|---|---|
| Air Flow | 116 CFM |
| Weight | 355 g |
| Manufacturer | Comair Rotron |
| Series | DD4021 |
| Dimensions | 118x118x55 mm |
| Voltage Rating | 12 VDC |
| Fan Type | DC |
| Operating Voltage | 7 – 15VDC |
| Current Rating | 2.75 A |
| Power Rating | 33 W |
| Fan Speed | 5900 RPM |
| Air Flow (m3) | 197.1 m³/h |
| Bearing Type | Ball Bearing |
| Part Number | 19039823A |
| Noise Level | 67 dB(A) |
| Static Pressure | 1.73 in H2O |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Storage Temperature | -40°C to 85°C |
| Approval Agency | CE, cUL, UL |
| Lifetime @ Temp | 52000 Hrs @ 40°C |
| Propeller | Plastic, Black, UL 94V-0 |
| Venturi | Die Cast Aluminum |
| Termination | 3 Wire Leads |
| Category | Impeller |
| Static Pressure Pa | 430 Pa |
