Description

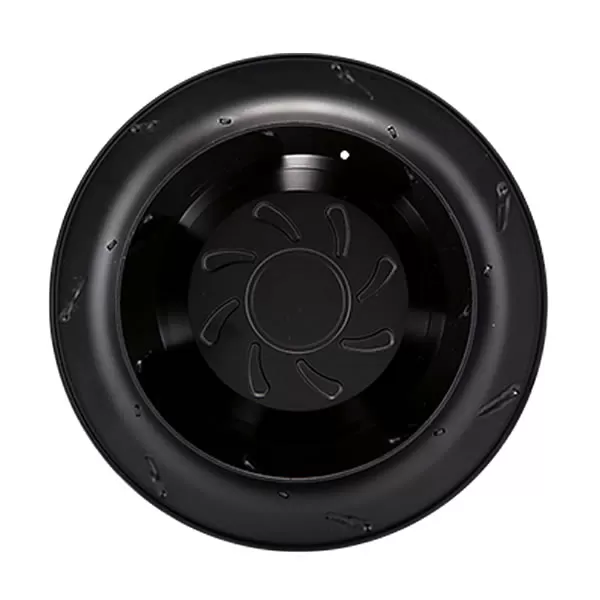

CRKU133B-E24 Comair Rotron 17002097A 133x91mm 24VDC 1.000A 24W 3600RPM 206CFM 356m³/h 66dB(A) Ball 1.22inH2O 304Pa Cable Impeller fan
Specifications
| Model Number | CRKU133B-E24 |
|---|---|
| Air Flow | 206 CFM |
| Weight | 520 g |
| Manufacturer | Comair Rotron |
| Series | CRKU133B |
| Dimensions | 133×91 mm |
| Voltage Rating | 24 VDC |
| Fan Type | DC |
| Operating Voltage | 21.6-26.4VDC |
| Current Rating | 1.000 A |
| Power Rating | 24 W |
| Fan Speed | 3600 RPM |
| Air Flow (m3) | 356 m³/h |
| Bearing Type | Ball Bearing |
| Part Number | 17002097A |
| Noise Level | 66 dB(A) |
| Static Pressure | 1.22 in H2O |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Storage Temperature | -40°C to 85°C |
| Approval Agency | CE, UL |
| Lifetime @ Temp | 55000 Hrs @ 40°C |
| Propeller | Die Cast magnesium alloy,ED coating and powder coating |
| Venturi | Die Cast Aluminum |
| Termination | Cable |
| Category | Impeller |
| Static Pressure Pa | 304 Pa |
