Description

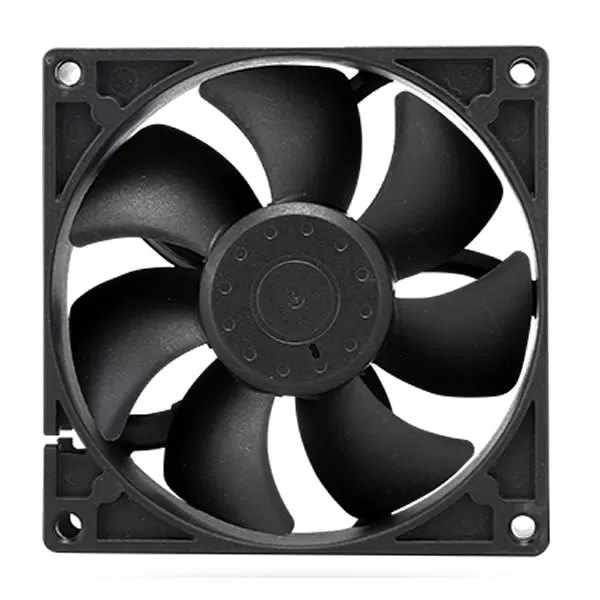

CR9225-LD48BPL Comair Rotron 17002059A 92x92x25mm 48VDC 0.04A 1.92W 3000RPM 48CFM 81.6m³/h 46dB(A) Ball 0.13inH2O 32Pa 2 Wire Leads Axial DC fan
Specifications
| Model Number | CR9225-LD48BPL |
|---|---|
| Air Flow | 48 CFM |
| Weight | 100 g |
| Manufacturer | Comair Rotron |
| Series | CR9225 DC |
| Dimensions | 92x92x25 mm |
| Voltage Rating | 48 VDC |
| Fan Type | DC |
| Operating Voltage | 43.2-52.8VDC |
| Current Rating | 0.04 A |
| Power Rating | 1.92 W |
| Fan Speed | 3000 RPM |
| Air Flow (m3) | 81.6 m³/h |
| Bearing Type | Ball Bearing |
| Part Number | 17002059A |
| Noise Level | 46 dB(A) |
| Static Pressure | 0.13 in H2O |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Storage Temperature | -40°C to 85°C |
| Approval Agency | CE, UL |
| Lifetime @ Temp | 50000 Hrs @ 40°C |
| Propeller | Plastic, Black, UL 94V-0 |
| Venturi | Plastic, Black, UL 94V-0 |
| Termination | 2 Wire Leads |
| Category | Axial DC |
| Static Pressure Pa | 32 Pa |
