Description

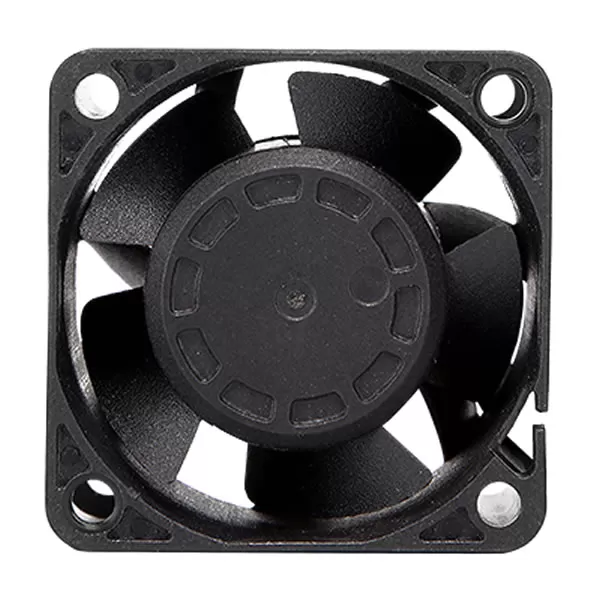

CR4028-XD12BPL Comair Rotron 17002003A 40x40x28mm 12VDC 0.23A 2.76W 12000RPM 15.9CFM 27.5m³/h 56dB(A) Ball 0.72inH2O 179Pa 2 Wire Leads Axial DC fan
Specifications
| Model Number | CR4028-XD12BPL |
|---|---|
| Air Flow | 15.9 CFM |
| Weight | 50 g |
| Manufacturer | Comair Rotron |
| Series | CR4028 DC |
| Dimensions | 40x40x28 mm |
| Voltage Rating | 12 VDC |
| Fan Type | DC |
| Operating Voltage | 10.8-13.2VDC |
| Current Rating | 0.23 A |
| Power Rating | 2.76 W |
| Fan Speed | 12000 RPM |
| Air Flow (m3) | 27.5 m³/h |
| Bearing Type | Ball Bearing |
| Part Number | 17002003A |
| Noise Level | 56 dB(A) |
| Static Pressure | 0.72 in H2O |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Storage Temperature | -40°C to 85°C |
| Approval Agency | CE, UL |
| Lifetime @ Temp | 45000 Hrs @ 70°C |
| Propeller | Plastic, Black, UL 94V-0 |
| Venturi | Plastic, Black, UL 94V-0 |
| Termination | 2 Wire Leads |
| Category | Axial DC |
| Static Pressure Pa | 179 Pa |
