Description

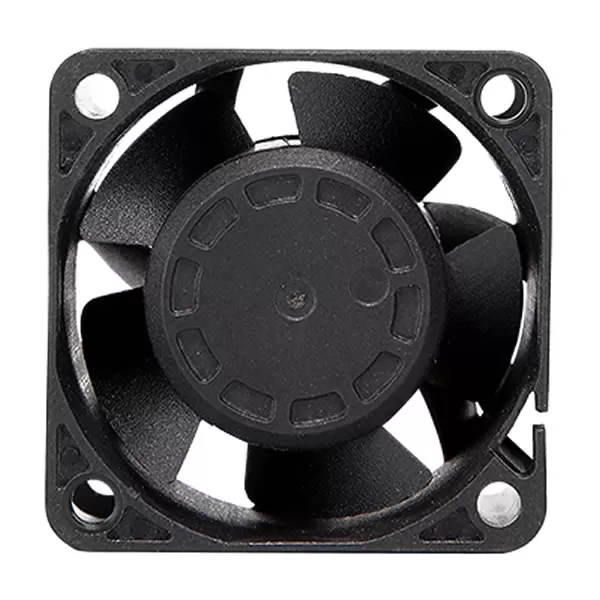

CR4028-HD12BPL Comair Rotron 17002002A 40x40x28mm 12VDC 0.15A 1.80W 10000RPM 13.3CFM 23.0m³/h 50dB(A) Ball 0.50inH2O 125Pa 2 Wire Leads Axial DC fan
Specifications
| Model Number | CR4028-HD12BPL |
|---|---|
| Air Flow | 13.3 CFM |
| Weight | 50 g |
| Manufacturer | Comair Rotron |
| Series | CR4028 DC |
| Dimensions | 40x40x28 mm |
| Voltage Rating | 12 VDC |
| Fan Type | DC |
| Operating Voltage | 10.8-13.2VDC |
| Current Rating | 0.15 A |
| Power Rating | 1.80 W |
| Fan Speed | 10000 RPM |
| Air Flow (m3) | 23.0 m³/h |
| Bearing Type | Ball Bearing |
| Part Number | 17002002A |
| Noise Level | 50 dB(A) |
| Static Pressure | 0.50 in H2O |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Storage Temperature | -40°C to 85°C |
| Approval Agency | CE, UL |
| Lifetime @ Temp | 45000 Hrs @ 70°C |
| Propeller | Plastic, Black, UL 94V-0 |
| Venturi | Plastic, Black, UL 94V-0 |
| Termination | 2 Wire Leads |
| Category | Axial DC |
| Static Pressure Pa | 125 Pa |
