Description

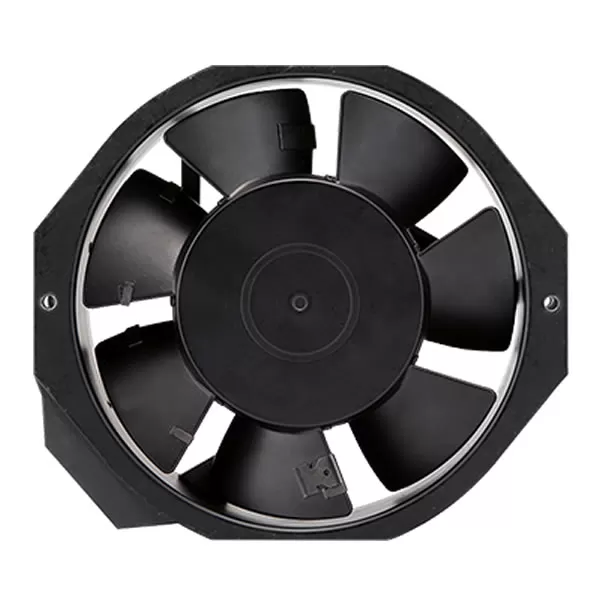

CR17023HA2BML Comair Rotron 17002094A 172x152x38mm 220/240VAC 0.13A|0.12A 27W|26W 2800RPM|3300RPM 130CFM|154CFM 220/262m³/h 57dB(A)|61dB(A) Ball 0.40inH2O|0.54inH2O 100Pa|134Pa 2 Terminals Axial AC fan
Specifications
| Model Number | CR17023HA2BML |
|---|---|
| Bearing Type | Ball Bearing |
| Category | Axial AC |
| Termination | 2 Terminals |
| Venturi | High quality magnesium alloy die-casting frame with ED coating and powder coating, Black. |
| Propeller | Magnesium alloy ED coating and painting. |
| Lifetime @ Temp | 50000 Hrs @ 40°C |
| Approval Agency | CE, UL |
| Storage Temperature | -40°C to 85°C |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Static Pressure | 0.40 in H2O, 0.54 in H2O |
| Noise Level | 57 dB(A), 61 dB(A) |
| Part Number | 17002094A |
| Air Flow (m3) | 220/262 m³/h |
| Air Flow | 130 CFM, 154 CFM |
| Fan Speed | 2800 RPM, 3300 RPM |
| Power Rating | 26 W, 27 W |
| Current Rating | 0.12 A, 0.13 A |
| Frequency | 50/60 Hz |
| Fan Type | AC |
| Voltage Rating | 220 ~ 240 VAC |
| Dimensions | 172x152x38 mm |
| Series | CR17023 AC |
| Manufacturer | Comair Rotron |
| Weight | 700 g |
| Static Pressure Pa | 100 Pa, 134 Pa |
