Description

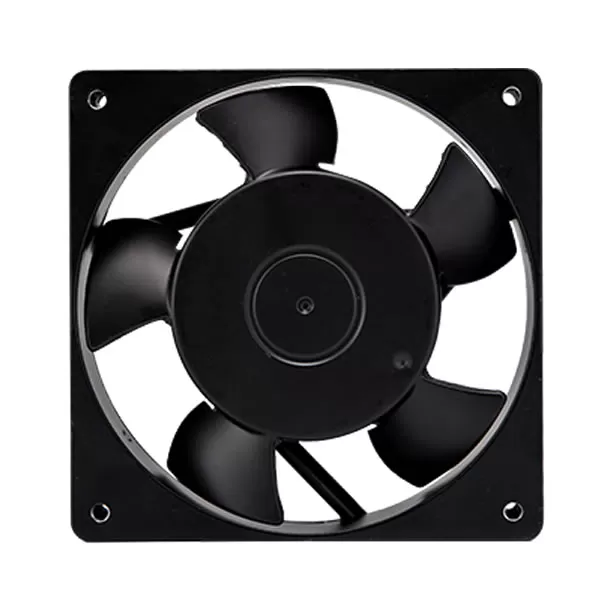

CR1225HA1BML Comair Rotron 17002088A 120x120x25.4mm 110/120VAC 0.17A|0.14A 16W|13W 2100RPM|2200RPM 60CFM|63CFM 102/110m³/h 38dB(A) Ball 0.15inH2O|0.16inH2O 38Pa|40Pa 2 Terminals Axial AC fan
Specifications
| Model Number | CR1225HA1BML |
|---|---|
| Bearing Type | Ball Bearing |
| Category | Axial AC |
| Termination | 2 Terminals |
| Venturi | High quality magnesium alloy die-casting frame with ED coating and powder coating, Black. |
| Propeller | Magnesium alloy ED coating and painting. |
| Lifetime @ Temp | 50000 Hrs @ 40°C |
| Approval Agency | CE, UL |
| Storage Temperature | -40°C to 85°C |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Static Pressure | 0.15 in H2O, 0.16 in H2O |
| Noise Level | 38 dB(A) |
| Part Number | 17002088A |
| Air Flow (m3) | 102/110 m³/h |
| Air Flow | 60 CFM, 63 CFM |
| Fan Speed | 2100 RPM, 2200 RPM |
| Power Rating | 13 W, 16 W |
| Current Rating | 0.14 A, 0.17 A |
| Frequency | 50/60 Hz |
| Fan Type | AC |
| Voltage Rating | 110 ~ 120 VAC |
| Dimensions | 120x120x25.4 mm |
| Series | CR 1225 AC |
| Manufacturer | Comair Rotron |
| Weight | 320 g |
| Static Pressure Pa | 38 Pa, 40 Pa |
