Description

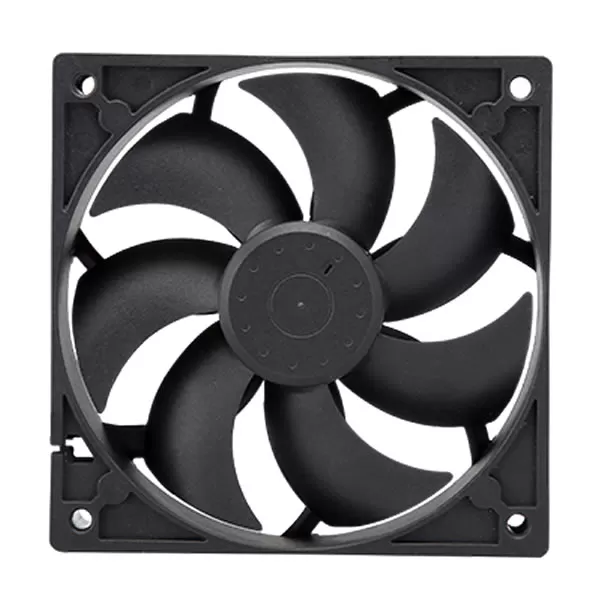

CR1225-LD12BPL Comair Rotron 17002063A 120x120x25mm 12VDC 0.28A 3.36W 3000RPM 95.6CFM 162.5m³/h 51dB(A) Ball 0.23inH2O 58Pa 2 Wire Leads Axial DC fan
Specifications
| Model Number | CR1225-LD12BPL |
|---|---|
| Air Flow | 95.6 CFM |
| Weight | 140 g |
| Manufacturer | Comair Rotron |
| Series | CR1225 DC |
| Dimensions | 120X120X25 mm |
| Voltage Rating | 12 VDC |
| Fan Type | DC |
| Operating Voltage | 10.8-13.2VDC |
| Current Rating | 0.28 A |
| Power Rating | 3.36 W |
| Fan Speed | 3000 RPM |
| Air Flow (m3) | 162.5 m³/h |
| Bearing Type | Ball Bearing |
| Part Number | 17002063A |
| Noise Level | 51 dB(A) |
| Static Pressure | 0.23 in H2O |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Storage Temperature | -40°C to 85°C |
| Approval Agency | CE, UL |
| Lifetime @ Temp | 50000 Hrs @ 40°C |
| Propeller | Plastic, Black, UL 94V-0 |
| Venturi | Plastic, Black, UL 94V-0 |
| Termination | 2 Wire Leads |
| Category | Axial DC |
| Static Pressure Pa | 58 Pa |
