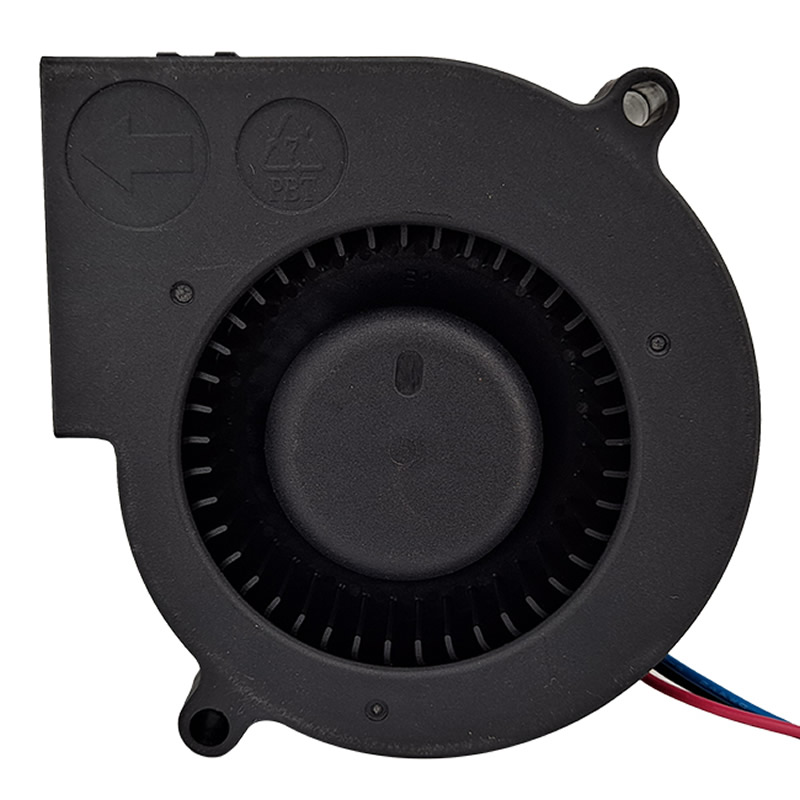

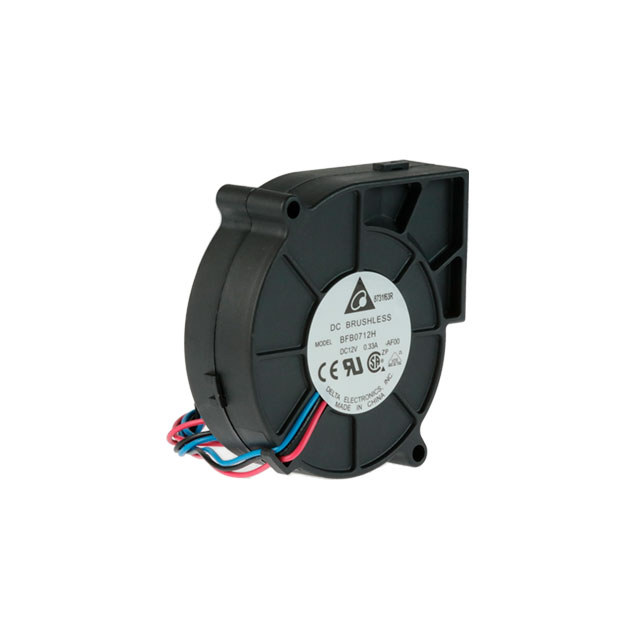

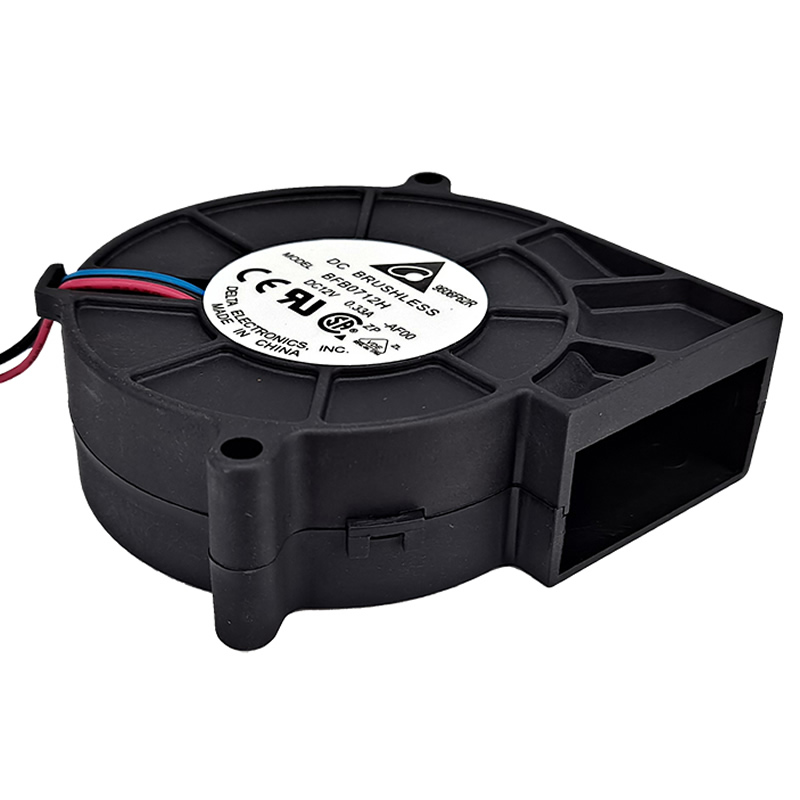

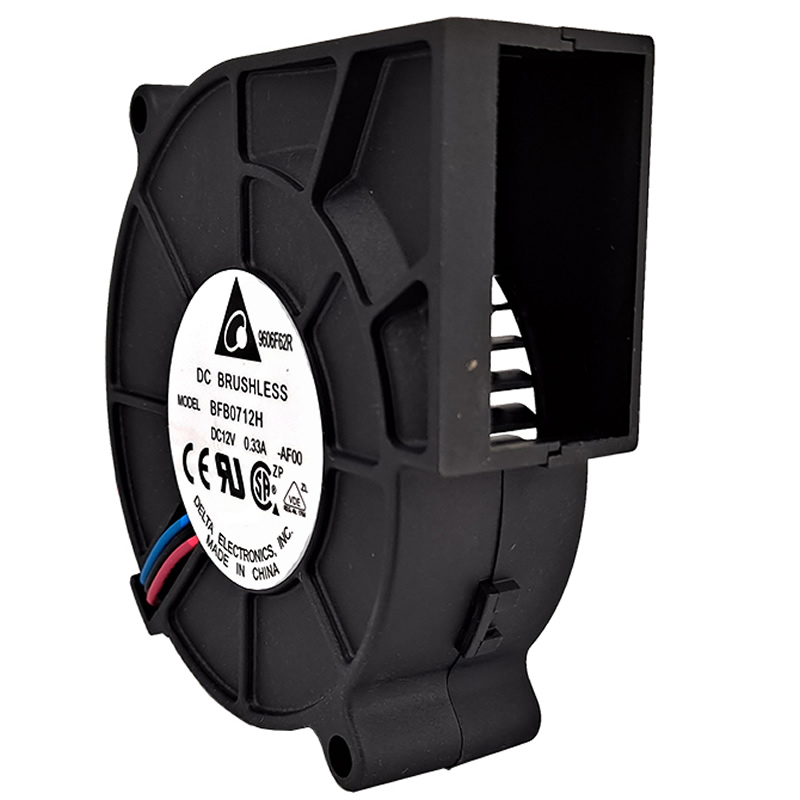

Description
BFB0712H-AF00 Delta 75.7×75.7x25mm Ball 12VDC 13.84CFM(0.392m3/min) 0.773inchH2O(19.63mmH2O) 48.0dB(A) 3.24W 4000RPM 3wireleads
Specifications
| Part Number | BFB0712H-AF00 |
|---|---|
| Fan Type | DC |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Features | Locked Rotor Protection, Speed Sensor (Tach) |
| Series | BFB |
| Air Flow (m3) | 0.392 m3/min |
| Dimensions | 75.7×75.7×25 mm |
| Termination | 3 wire leads |
| Manufacturer | Delta Electronics |
| Fan Speed | 4000 RPM |
| Power Rating | 3.24 W |
| Noise Level | 48.0 dB(A) |
| Static Pressure | 0.773 inchH2O (19.63 mmH2O) |
| Air Flow | 13.84 CFM |
| Voltage Rating | 12 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.199 lb (90.26 g) |
| Category | Blower |
| Current Rating | 0.27 A |
| Operating Voltage | 7 ~ 13.8 VDC |
| Material Frame | Plastic |
| Lifetime @ Temp | 50000 Hrs @ 40⁰C |
