Description

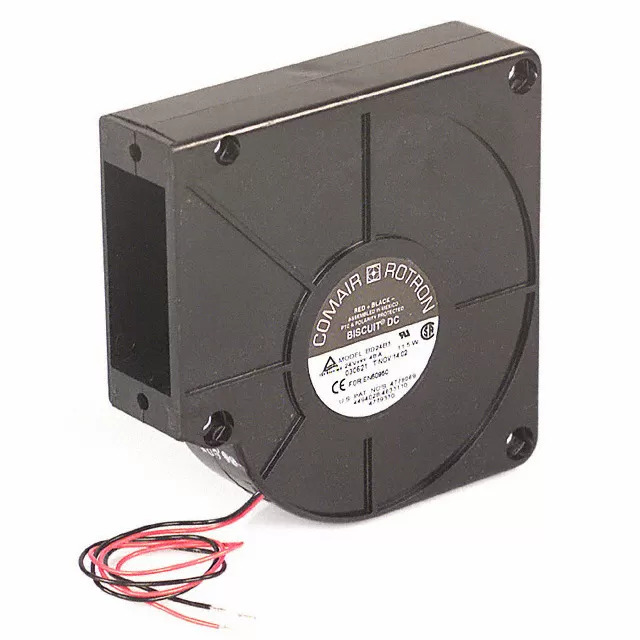

BD12K3 Comair Rotron 17000025A 121x121x31mm 12VDC 1.40A 16.8W 3750RPM 30CFM 51.0m³/h 53.5dB(A) Ball 1.36inH2O 339Pa 2 Wire Leads Blower fan
Specifications
| Model Number | BD12K3 |
|---|---|
| Air Flow | 30 CFM |
| Weight | 280 g |
| Manufacturer | Comair Rotron |
| Series | Biscuit DC |
| Dimensions | 121x121x31 mm |
| Voltage Rating | 12 VDC |
| Fan Type | DC |
| Operating Voltage | 6 – 14VDC |
| Current Rating | 1.40 A |
| Power Rating | 16.8 W |
| Fan Speed | 3750 RPM |
| Air Flow (m3) | 51.0 m³/h |
| Bearing Type | Ball Bearing |
| Part Number | 17000025A |
| Noise Level | 53.5 dB(A) |
| Static Pressure | 1.36 in H2O |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Storage Temperature | -40°C to 85°C |
| Approval Agency | CE, cUL, UL |
| Lifetime @ Temp | 52000 Hrs @ 70°C |
| Propeller | Plastic, Black, UL94V-0 |
| Venturi | Plastic, Black, UL94V-0 |
| Termination | 2 Wire Leads |
| Category | Blower |
| Static Pressure Pa | 339 Pa |
