Description

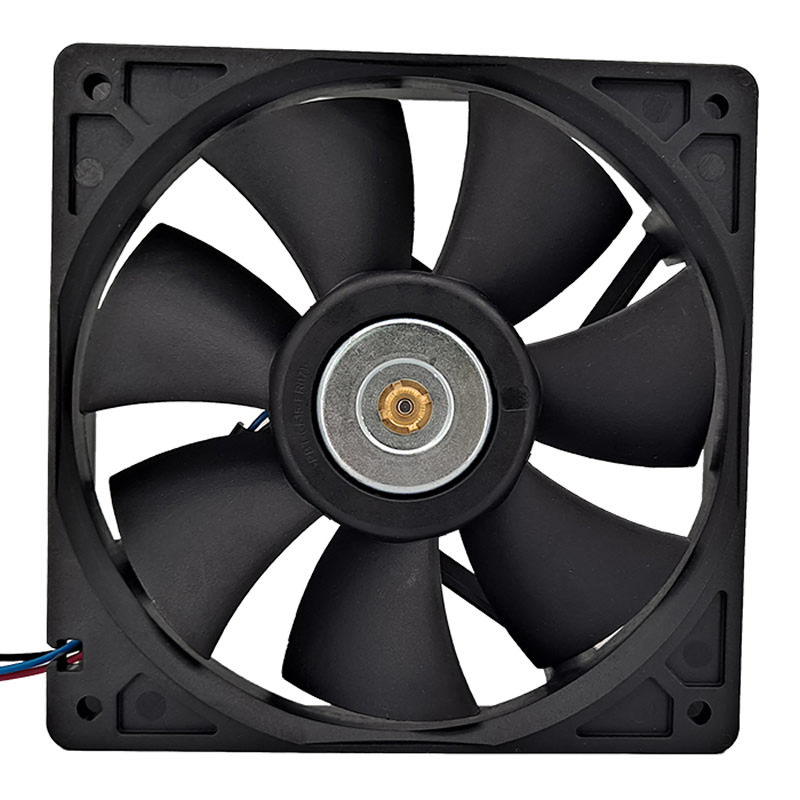

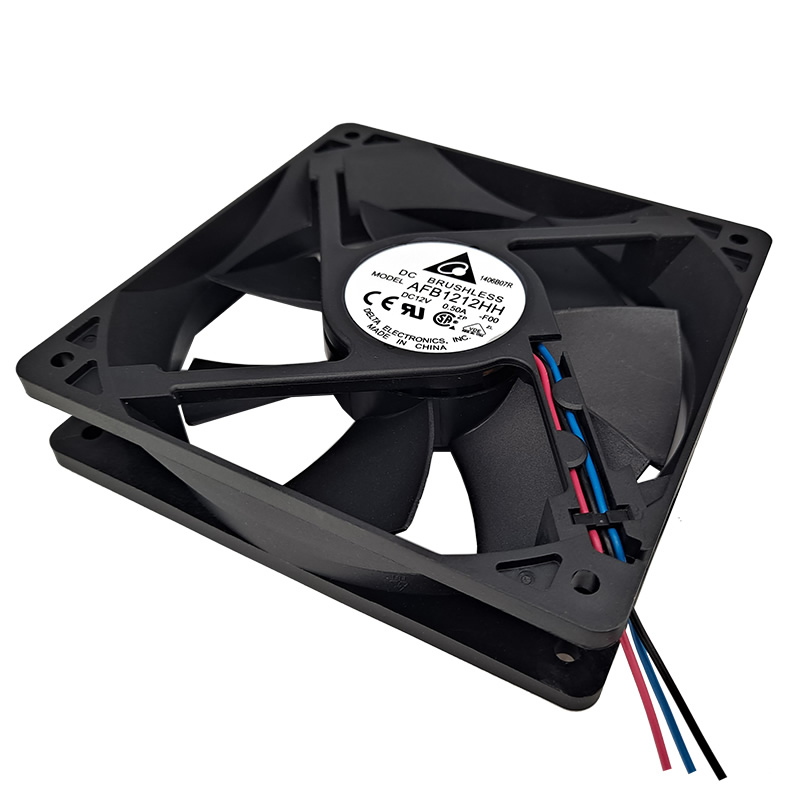

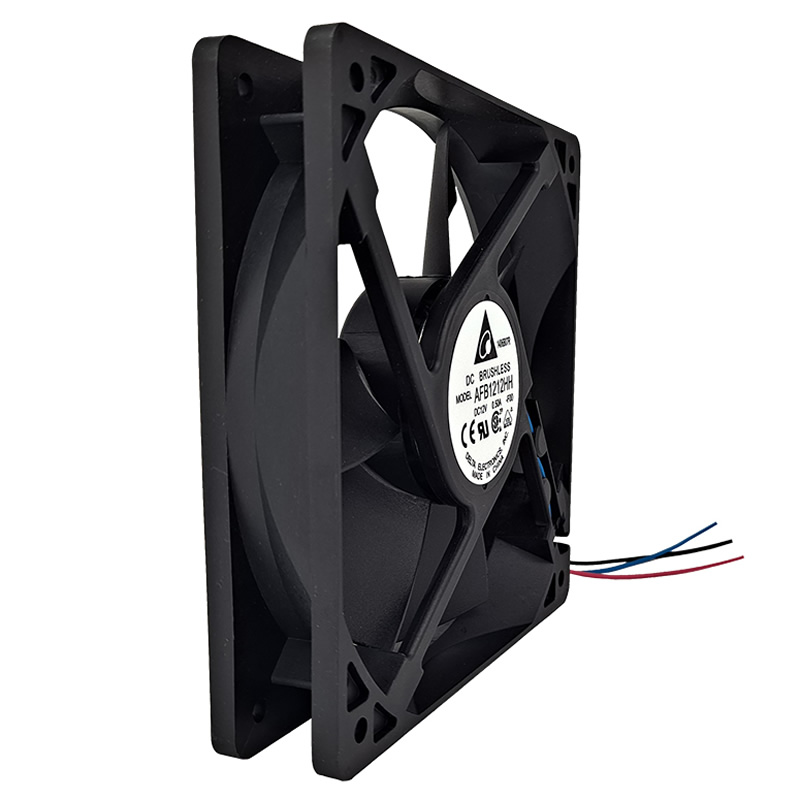

AFB1212HH-F00 Delta 120x120x25.40mm Ball 12VDC 0.50A 95.14CFM(2.694m3/min) 0.304inchH2O 41.5dB(A) 3.96W 2800RPM 3wireleads fan
Specifications
| Model | AFB1212HH-F00 |
|---|---|
| Manufacturer | Delta Electronics |
| Dimensions | 120x120x25.40 mm |
| Fan Speed | 2800 RPM |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
| Features | Locked Rotor Protection, Speed Sensor (Tach) |
| Series | AFB |
| Air Flow (m3) | 2.694 m3/min |
| Termination | 3 wire leads |
| Fan Type | DC |
| Noise Level | 41.5 dB(A) |
| Power Rating | 3.96 W |
| Static Pressure | 0.304 inchH2O (7.73 mmH2O) |
| Air Flow | 95.14 CFM |
| Voltage Rating | 12 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.437 lb (198.00 g) |
| Category | Axial |
| Current Rating | 0.50 A |
| Material Frame | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
| Number of blades | 7 |
| Subcategory | DC axial fan |
