Description

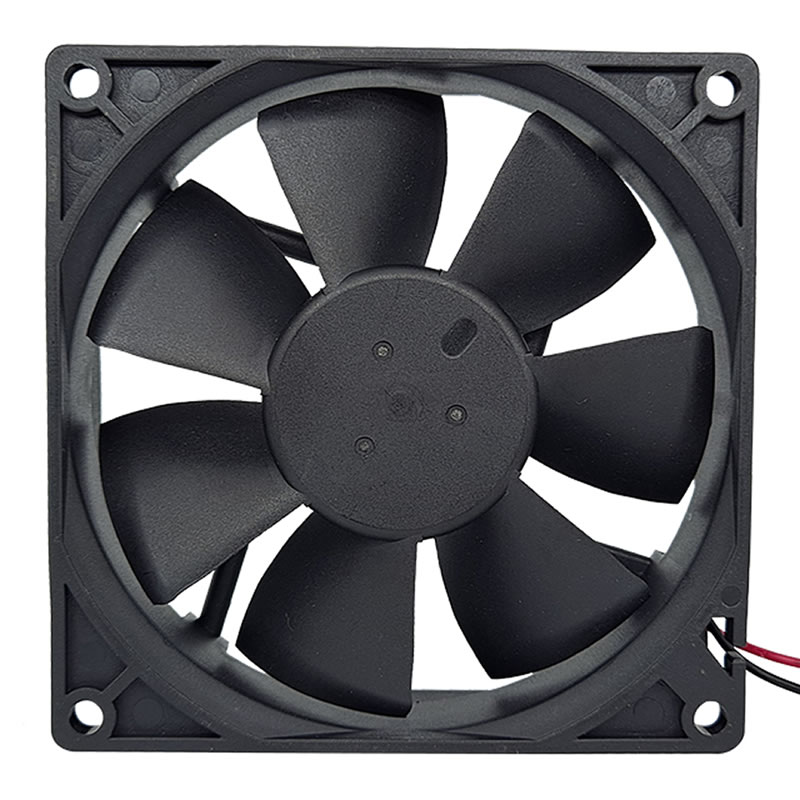

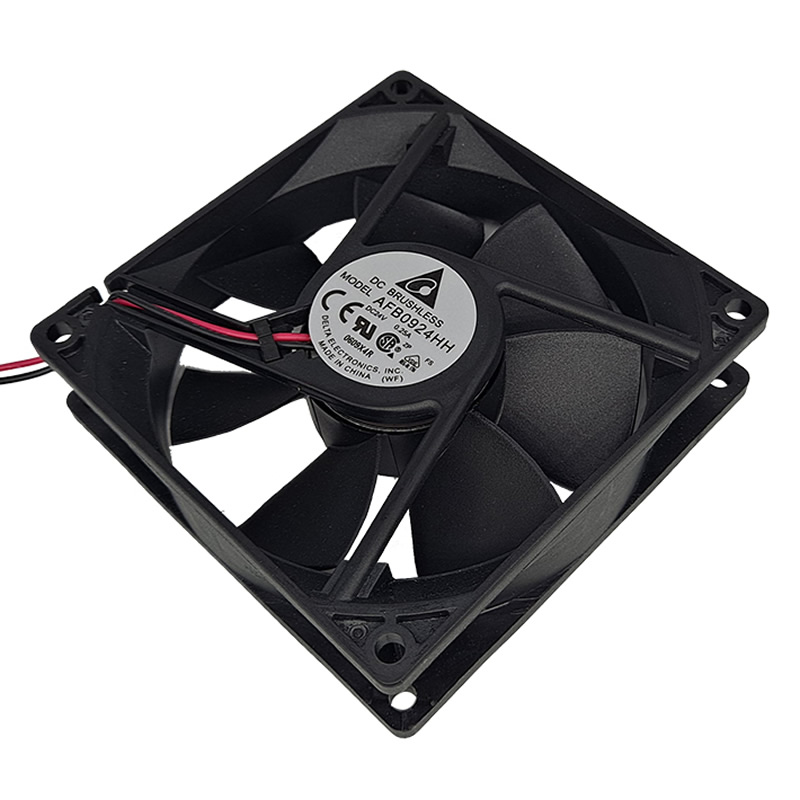

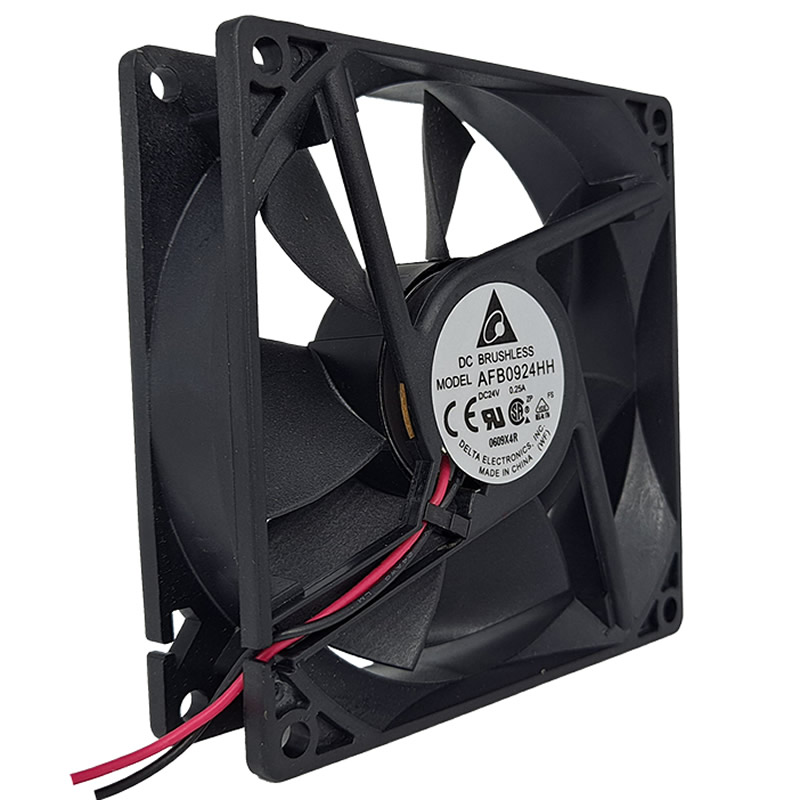

AFB0924HH Delta 92x92x25.40mm Ball 24VDC 57.92CFM(1.640m3/min) 0.221inchH2O(5.62mmH2O) 38.0dB(A) 3.12W 3200RPM 2wireleads
Specifications
| Part Number | AFB0924HH |
|---|---|
| Noise Level | 38.0 dB(A) |
| Material Blade | Plastic |
| Material Frame | Plastic |
| Operating Voltage | 14 ~ 27.6 VDC |
| Current Rating | 0.13 A |
| Category | Axial |
| Weight | 0.218 lb (98.88 g) |
| Bearing Type | Ball Bearing |
| Voltage Rating | 24 VDC |
| Air Flow | 57.92 CFM |
| Static Pressure | 0.221 inchH2O (5.62 mmH2O) |
| Power Rating | 3.12 W |
| Fan Type | DC |
| Fan Speed | 3200 RPM |
| Manufacturer | Delta Electronics |
| Termination | 2 wire leads |
| Dimensions | 92x92x25.40 mm |
| Air Flow (m3) | 1.640 m3/min |
| Series | AFB |
| Features | Locked Rotor Protection |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
