Description

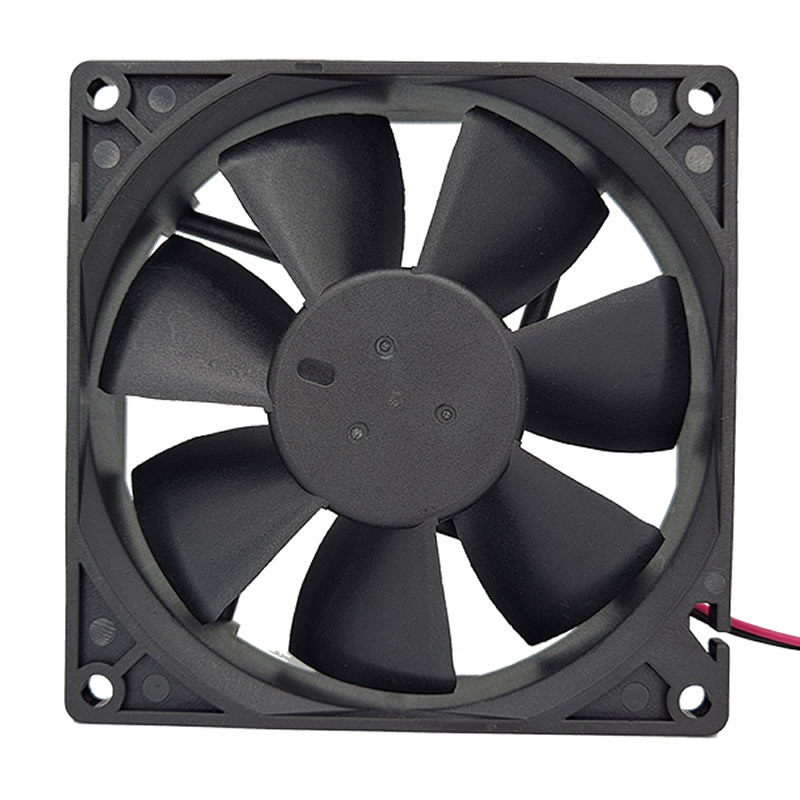

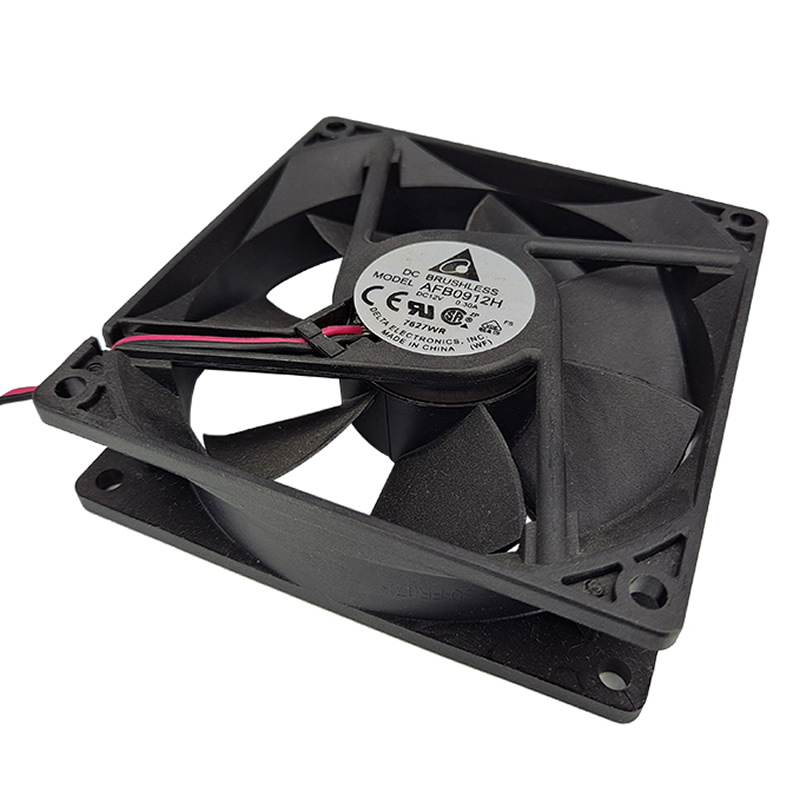

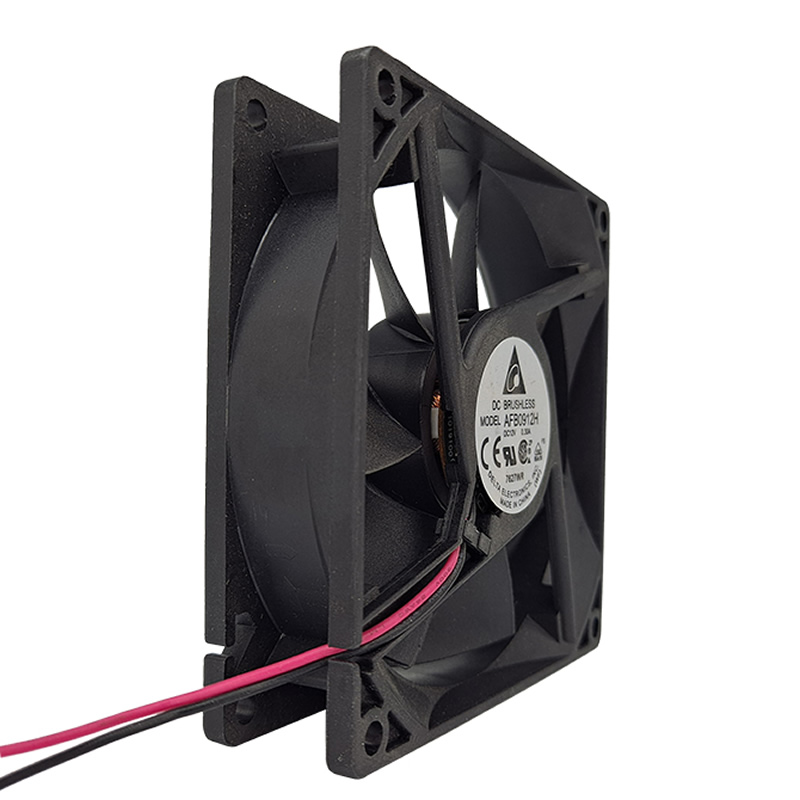

AFB0912H Delta 92x92x25.40mm Ball 12VDC 51.21CFM(1.450m3/min) 0.177inchH2O(4.50mmH2O) 34.0dB(A) 1.92W 2850RPM 2wireleads fan
Specifications
| Part Number | AFB0912H |
|---|---|
| Fan Type | DC |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Features | Locked Rotor Protection |
| Series | AFB |
| Air Flow (m3) | 1.450 m3/min |
| Dimensions | 92x92x25.40 mm |
| Termination | 2 wire leads |
| Manufacturer | Delta Electronics |
| Fan Speed | 2850 RPM |
| Power Rating | 1.92 W |
| Noise Level | 34.0 dB(A) |
| Static Pressure | 0.177 inchH2O (4.50 mmH2O) |
| Air Flow | 51.21 CFM |
| Voltage Rating | 12 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.219 lb (99.34 g) |
| Category | Axial |
| Current Rating | 0.16 A |
| Operating Voltage | 7 ~ 13.8 VDC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
